America's Newest and Deadliest Destroyer Has Finally Set Sail

America's Newest and Deadliest Destroyer Has Finally Set Sail

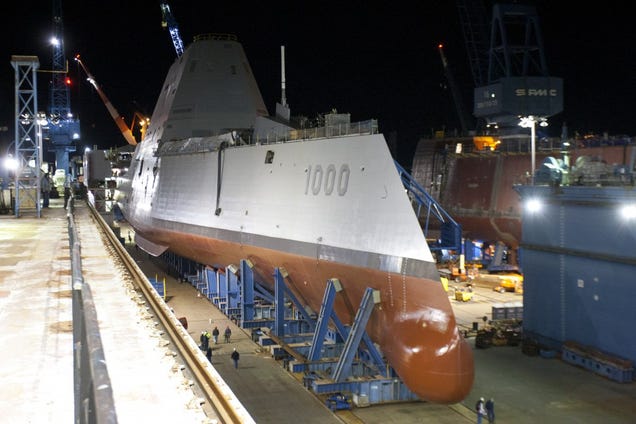

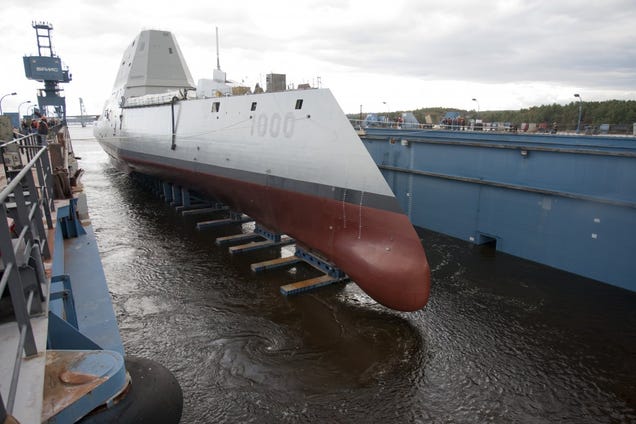

Reports of the USS Zumwalt's christening being delayed until next spring have been greatly exaggerated. In a surprise move, the US Navy instead launched the next-generation destroyer from its berth in Bath, Maine early this morning.

America's Newest and Deadliest Destroyer Has Finally Set Sail

"This is the largest ship Bath Iron Works has ever constructed and the Navy's largest destroyer. The launch was unprecedented in both its size and complexity," said Capt. Jim Downey, the Zumwalt-class program manager for the Navy's Program Executive Office, Ships in a press release disseminated this morning. "Due to meticulous planning and execution, the operation went very smoothly. I'm extremely pleased with the results and applaud the combined efforts of the Navy-industry team."
America's Newest and Deadliest Destroyer Has Finally Set Sail
The ship is expected to reach operational capacity—that is, acquire a full crew compliment, teach them the ins and outs of the vessel, and prepare them for combat operations—by early 2016.
America's Newest and Deadliest Destroyer Has Finally Set Sail
And given that the Zumwalt can produce power on the magnitude of 78 MW, there's a solid chance that this littoral Destroyer could also play test bed to the Navy's top secret railgun prototype system—capable of firing a projectile at seven times the speed of sound—which has been undergoing feverish development over the past few years. [BI]
3
Pending approvalOriginal post by Andrew Tarantola on Gizmodo

America's 21st Century Destroyer Set Sail For the First Time Saturday (UPDATED)

America's 21st Century Destroyer Set Sail For the First Time Saturday (UPDATED)

The U.S. possesses the most formidable naval fleet in the world. However, the face of oceanic warfare is rapidly evolving and bears little resemblance to 20th century sea battles. Naval dominance is no longer decided in the middle of the Pacific or Atlantic, but rather in shallow territorial waters. To meet these new offshore challenges, the U.S. Navy has spent years and billions on a new class of Destroyer.

Dubbed the Zumwalt-class in honor of Admiral Elmo R. "Bud" Zumwalt Jr., Chief of Naval Operations from 1970 to 1974, these ships grew out of the older DD21 "21st Century Destroyer" program when Congress gutted its funding in 2001. The program originally called for more than 30 Zumwalts to be built but cost overruns have seen the program shrink to two dozen, then seven, and now just three ships. However, given the estimated capabilities of these multi-role destroyers, three should be more than enough to handle most anything foreign powers can throw at them.

The first such vessel, the one that was (Update: supposed to be) christened on October 19, is demarked DD 1000 and is built with surface warfare, anti-aircraft, and naval fire support missions in mind. It features an all-composite superstructure and "tumblehome" hull, in that it slopes inward above the waterline much like the old Civil War Ironclad, that drastically reduces the ship's radar cross-section (much like the angular form of the F-117 Nighthawk). This means that even though the Zumwalts—at 610 feet long with an 80-foot beam and 28-foot draft—are nearly 40 percent bigger than the previous Arleigh Burke-class, they register about the same size as Lt. Dan's fishing boat on the radar screen and are just slightly louder than a Los Angeles-class submarine. That stealthiness comes at a price, though; tumblehome designs are notoriously unstable when quickly turning and when firing ordnance. To counter that effect, Zumwalts can release ballast and sink lower into the ocean when the going gets rough. What's more, the new hull is designed to cut through the waves, rather than bounce over them, in order to improve stability.

The inside of the ship is divided into a series of 16 Electronic Modular Enclosures (EMEs). These independent boxes shield the boat's delicate electronics—packed into some 235 electronics cabinets per EME—from electromagnetic interference, shock, and vibration during even the most hectic battles.

The Zumwalt-class' electronics utilization extends to its power and propulsion systems as well. The ship's 78 MW Integrated Power System (IPS) employs a pair of Rolls-Royce Marine Trent-30 gas turbines driving two Curtiss-Wright generators that in turn drive the two Advanced Induction Motors (AIM) that turn the propellers. This setup significantly reduces thermal and audible signatures, though it wasn't the Navy's first choice. The Zumwalts were originally meant to use Permanent Magnet-Synchronous Motors (PMM), but due to scheduling and reliability concerns, the Navy switched over to AIMs during the construction process. According to Defense Industry Daily:

...The exact choice of engine systems remains somewhat controversial at this point. The concept was originally for an integrated power system (IPS) based on in-hull permanent magnet synchronous motors (PMMs), with Advanced Induction Motors (AIM) as a possible backup solution. The design was shifted to the AIM system in February 2005 in order to meet scheduled milestones; PMM technical issues were subsequently fixed, but the program has moved on. The downside is that AIM technology has a heavier motor, requires more space, requires a "separate controller" to be developed to meet noise requirements, and produces one-third the amount of voltage. On the other hand, these very differences will force time and cost penalties from design and construction changes if the program wishes to "design AIM out"...

Still, these motors are easily capable of moving the 12,000 ton ship at speeds up to 30 knots.

And it just wouldn't be a naval destroyer if the Zumwalt didn't have the ability to lay extreme amounts of waste. These ships are expected to be outfitted with 20 PVLS (peripheral vertical launch system) tubes capable of carrying either a single Tactical Tomahawk (a bigger, meaner version of today's cruise missile) or a quartet of RIM-162 Evolved Sea Sparrow Missiles (ESSM). These PVLS ring the outer edge of the deck, which reduces the chances of chain reaction explosions should one missile tube be hit. What's more, the armor on the outer side of the tube is thinner than the armor on the inner side where it rests against the hull. This incites any explosions that do occur—caused either from enemy fire or an internal misfire—to direct outwards, away from the ship itself. Additionally, the Zumwalt-class will carry a pair of 155 mm AGS (Advanced Gun System) cannons, each with a 920 round LRLAP magazine that is automatically loaded by the ship's automated weapon handling and storage system, as well as two 57 mm guns, one MH-60R helicopter forde-mining operations, and up to three Firescout drone choppers.

All this automation means that fewer sailors are put in the line of fire. A Zumwalt-class destroyer will accommodate just 142 seamen, compared to the 300 needed to properly run the older Spruance-class destroyers. This reduction in crew also translates into a reduction in needed ammo, food, supplies, and overall operational costs.

The Zumwalt Destroyer was christened in Bath, Maine yesterday (Update: Just kidding folks! Turns out the Navy delayed the ship's christening at the very last minute. The DD1000 will be named early next spring.) It is expected to officially join the fleet later next year. [Naval Technology - Wiki - Raytheon]
