Photo courtesy University of Michigan

To help celebrate the school’s 200-year anniversary, students at the University of Michigan have decided to build a time capsule. Boring, right? Not exactly. Instead of burying it, which would inevitably lead to its contents rotting away, the students want to blast it into space where it will orbit the earth for 100 years, potentially giving it a better chance at surviving.

The process of creating a time capsule usually involves building what is essentially a miniature vault designed to protect what’s inside—be it photos, memorabilia, newspapers, or whatever—from the elements and anythi else decades of neglect can throw at it. More often than not, it fails, resulting in a disappointing reveal when it’s eventually opened. But in space there’s no moisture, oxygen, or microscopic creatures that can destroy what you’re trying to preserve.

Photo courtesy University of Michigan

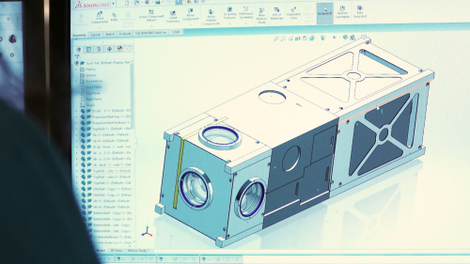

Instead of a vault, however, the University of Michigan students are designing and building a “cubesat”—a tiny satellite made up of four-inch cubes—that will contain almost 1,000 interviews from students at the school, all microscopically etched onto silicon chips. The tiny time capsule will also feature the school’s mission statement encoded onto synthetic DNA, so that in 100 years future students can study how well it holds up after a century in space.

There won’t be any photographs or newspaper clippings stuffed into the cubesat time capsule, however, as the students need to maximize the limited space they have available to incorporate a propulsion system—the first to be incorporated into a tiny satellite like this. Earth’s gravity eventually pulls everything orbiting our planet back down, and to keep this time capsule up there for 100 years, it needs its own propulsion system to counteract the pull of gravity.

Photo courtesy University of Michigan

But there’s yet another challenge to designing a satellite that will eventually be retrieved after 100 years in orbit: it won’t be able to carry enough power to communicate with the Earth the entire time. Eventually it will go silent, so the students have integrated external reflectors into its design so that when 100 years is up, students of the future can use a ground-based laser system to scan the skies until they can visually detect it. At that point they’ll also be able to track its orbit, and calculate where it will eventually crash to earth when its orbit decays.

Advertisement

The experiment is certainly a creative way to ensure that the time capsule’s contents survive the century-long trip. But after 60 years of sending rockets, satellites, and other spacecraft into orbit, it’s also getting really crowded and cluttered around our planet. So maybe the last thing we need is everyone blasting time capsule satellites up there that do nothing more than just hang around, in the way, for 100 years.

[University of Michigan: M-BARC]

Correction, 3/14/17, 12:17 p.m.: The University of Michigan M-BARC team has provided additional details and clarifications on why its cubesat satellite requires its own propulsion system: “The propulsion system is not to counteract Earth’s gravity, but for the spacecraft to reach a final, stable orbit. The spacecraft will be launched into a Geosynchronous Transfer Orbit (GTO) and the propulsion system will change the orbit to a modified GTO.” (To ensure the cubesat avoids the most crowded areas of Earth’s orbit.) “The perigee (closest point in orbit to earth) will be raised from ~185km to ~2100km and the apogee (farthest point in orbit to earth) will be reduced by ~200km for two reasons; to stay in a stable orbit that will not decay, and to abide by the 25-year NASA orbital debris rule where a spacecraft must not be in Low Earth Orbit, LEO (up to 2000 km) or Geosynchronous Orbit, GEO (35,786 km) for more than 25 years.”

Advertisement

The team also wanted to clarify that after 100 years the craft won’t come crashing down to Earth by itself, but will be dependent on a future team of students to come up with a way to retrieve the satellite, and the messages it’s preserving, from orbit.
