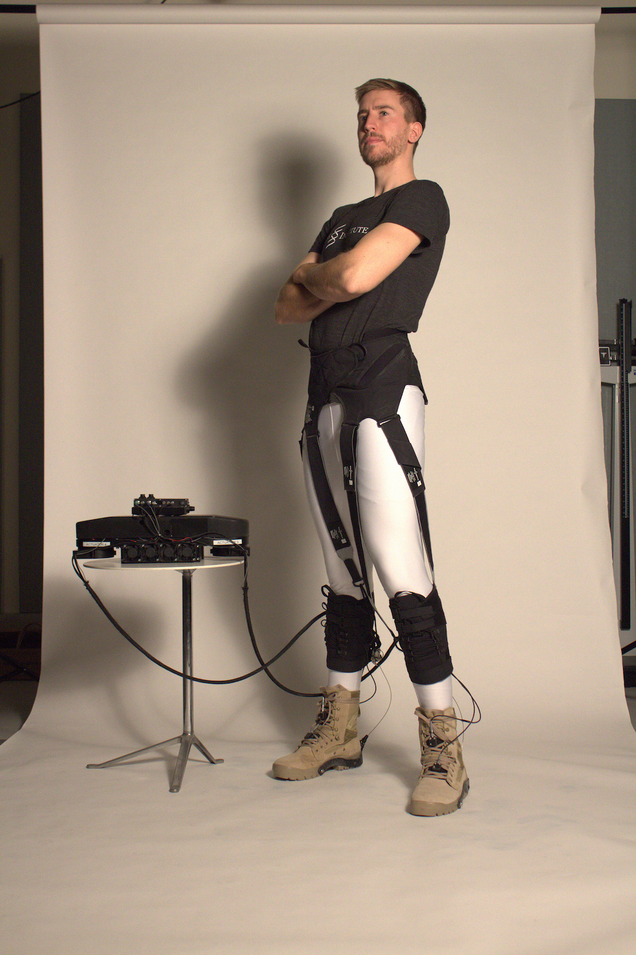

Robotic ankles attached to a robotic exosuit. IMAGE: Harvard Biodesign Lab

As machines go, the human body is an extraordinarily efficient one. The way we move—our arm swing, cadence, step length—is all calibrated to minimize energy consumption, allowing the body to get the maximum mileage out of calories it consumes. But in the burgeoning field of soft robotics, scientists have struggled to replicate this. Scientists imagine that one day, robotic exoskeletons could help sick kids walk and make the elderly stronger, supplying weak bodies with supplemental strength. If only those robotic exteriors could move as efficiently as a healthy human body.

Now researchers at Harvard believe they may have the key: a robotic ankle.

Robotic ankles attached to a soft robotic exosuit. Image: Harvard Biodesign Lab

Yes, we know, it looks like a high-tech knee brace, but the key innovation here is targeting the mechanical force of a robotic exosuit directly at the ankle joints.


Robotic exoskeletons are typically made of soft material equipped with fake mechanical muscles intended to take a load off of real ones, thus augmenting the body’s natural abilities. The more work those mechanical muscles can do, the less the wearer’s real body has to. But many models use heavy batteries and motors, along with uncomfortable frames that make walking harder. The Harvard researchers were interested in putting more of that load on the robotic exoskeleton. To do so, they decided to explore the human gait.

By studying seven healthy men wearing an exosuit on a treadmill, the scientists determined that a robotic ankle conferred the wearer maximum assistance. The robotic ankle helped to propel the wearer forward while facilitating a natural stride. The ankle also assisted with hip movement. This, researchers wrote in a paper published today in Science Robotics, caused the wearers’ metabolic energy consumption to decrease by 23 percent—a record rate.

Robotic ankles attached to a robotic exosuit. IMAGE: Harvard Biodesign Lab

The research is preliminary and many questions remain. For one, it’s unclear whether it was the hip or ankle assistance that helped contribute to that reduction in energy expenditure the most. But many debilitating diseases, such as Parkinson’s, make the simple act of walking around an incredible energy drain. For those people, this work could eventually mean a huge improvement in quality of life.


[Science Robotics]
