When you drive, the second most important thing you should keep your eyes on is the dashboard of your car (the first thing being the road). In space, however, it’s the controls that are the most essential for navigating and operating your spacecraft. From Gagarin to Scott Kelly, here’s a brief visual history of the human-spacecraft interface.

Advertisement

If we look at all the main instrument panels humankind has designed and built during the past 55 years, we can see how the display and control system of spacecraft have become more complex and sophisticated and back again. The following set of images will place you in front of dozens of analog and digital instruments, displays, hand controllers, pedals, levers and switches that astronauts, cosmonauts, and taikonauts have used over the years, and what they will use moving forward.

Consider the Space Shuttle, which had nearly two thousand switches and controls; a far cry from the Vostok-1 control board and display, which had only about 25 switches and controls for cosmonaut Yuri Gagarin to use on his historic flight (see the second photo below).

Advertisement

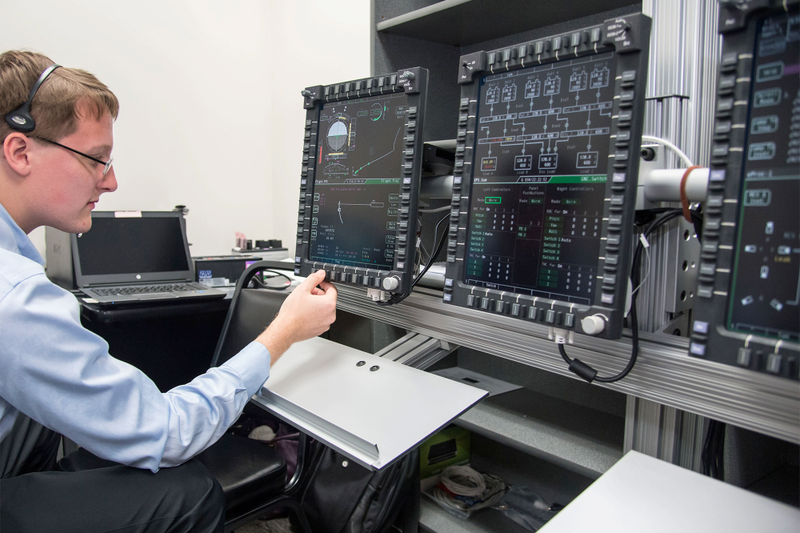

Now, the age of touch screens and ever-smarter software is clearing up the spacecraft flight deck.

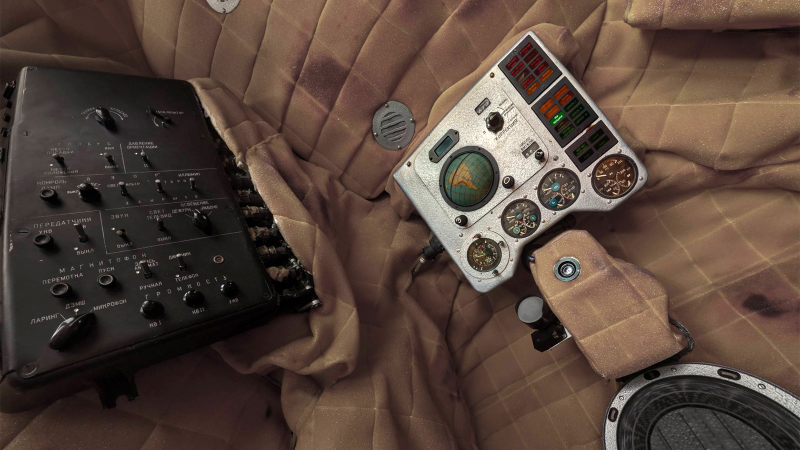

Vostok, 1960-1963, Voskhod, 1964-1965 spacecraft

Image: AP

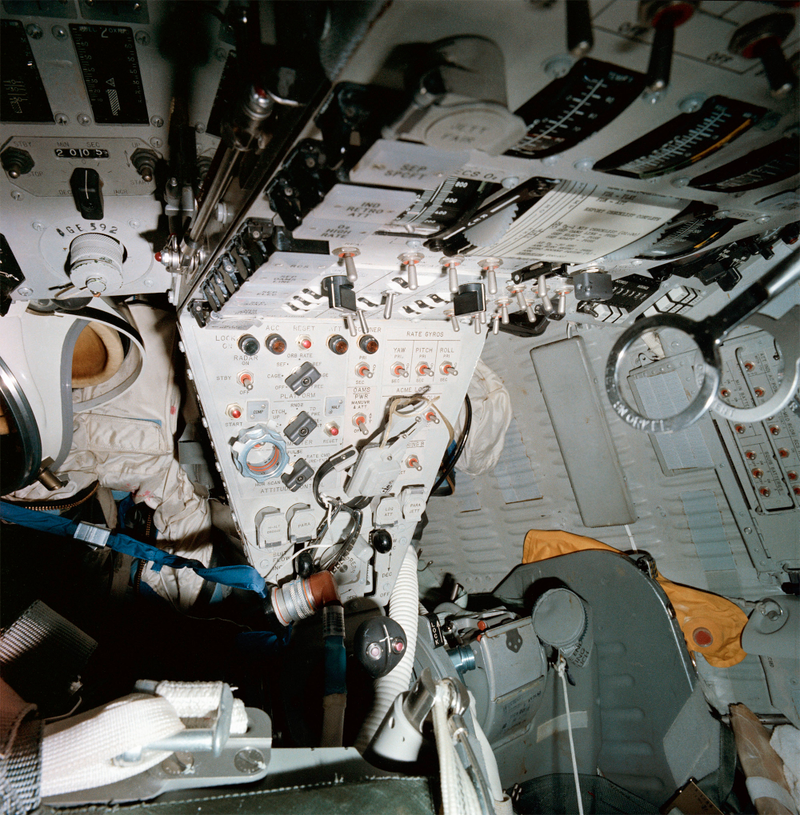

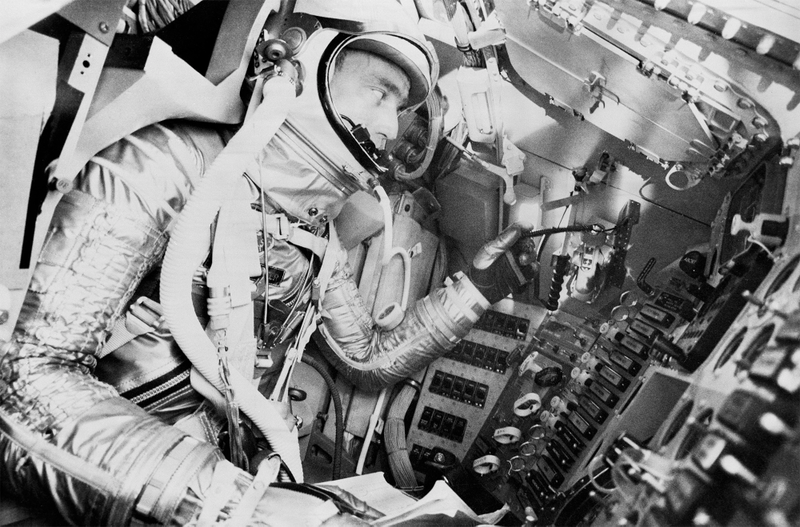

Mercury spacecraft’s instruments and controls, 1961

Image: NASA
Image: NASA
Image: NASA

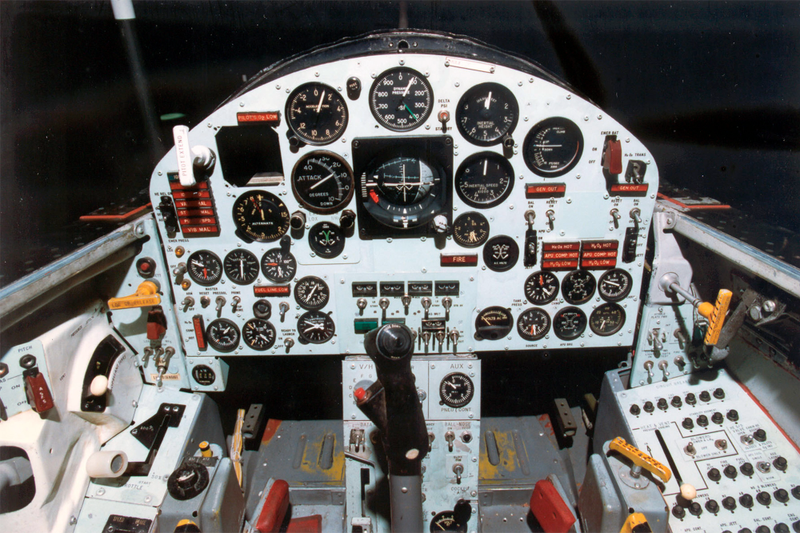

The North American X-15 spaceplane, 1960s

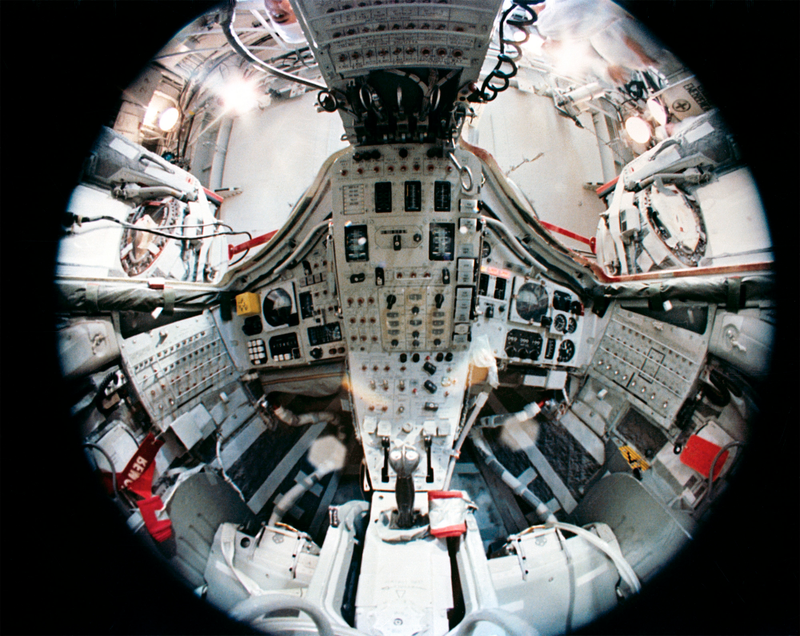

Gemini spacecraft’s displays and controls, 1965

Image: NASA
Image: NASA
Image: NASA

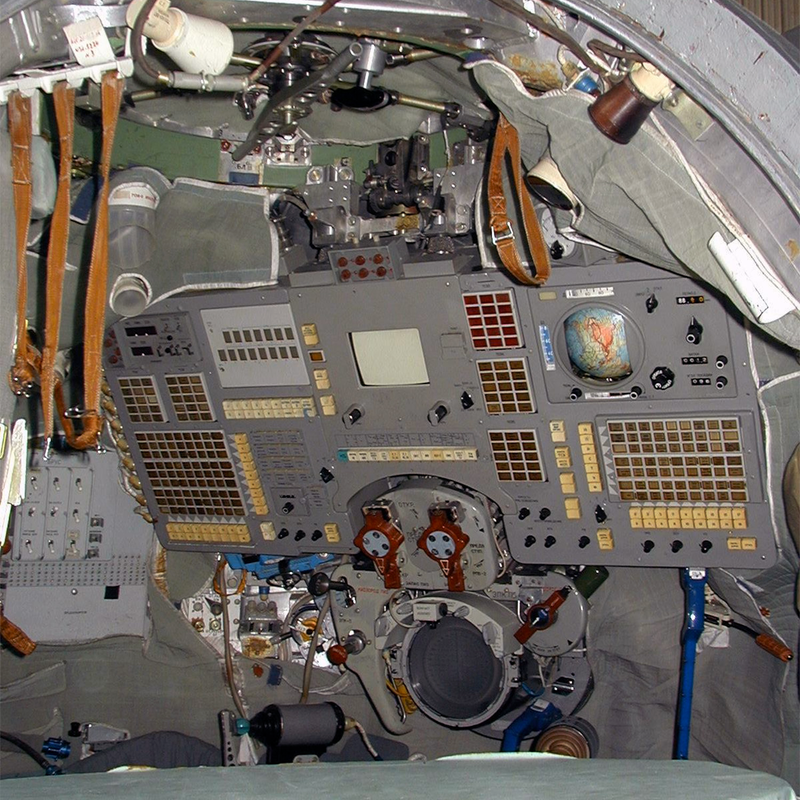

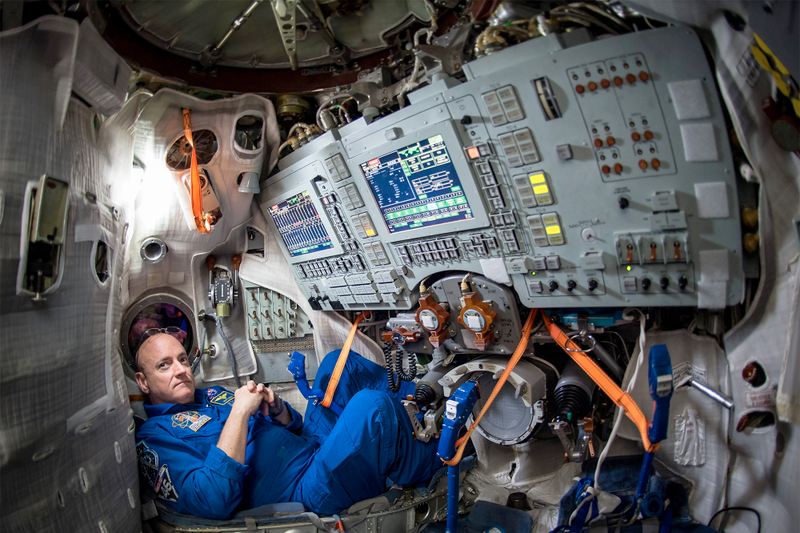

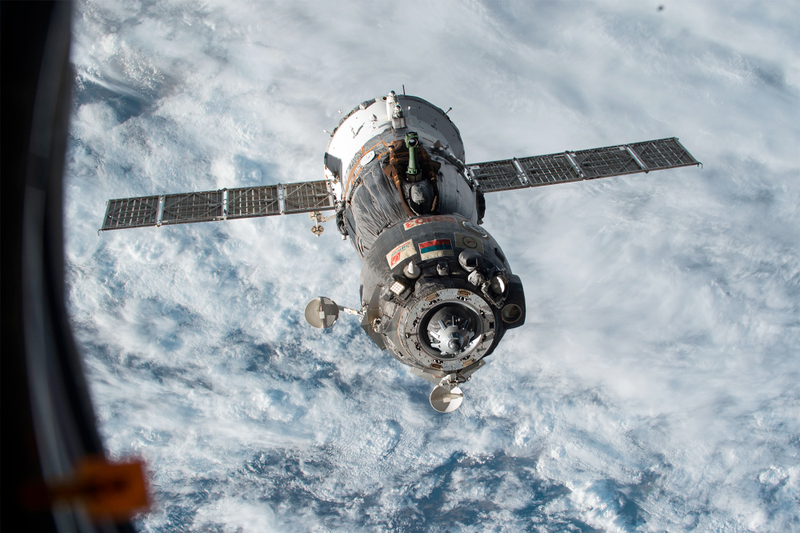

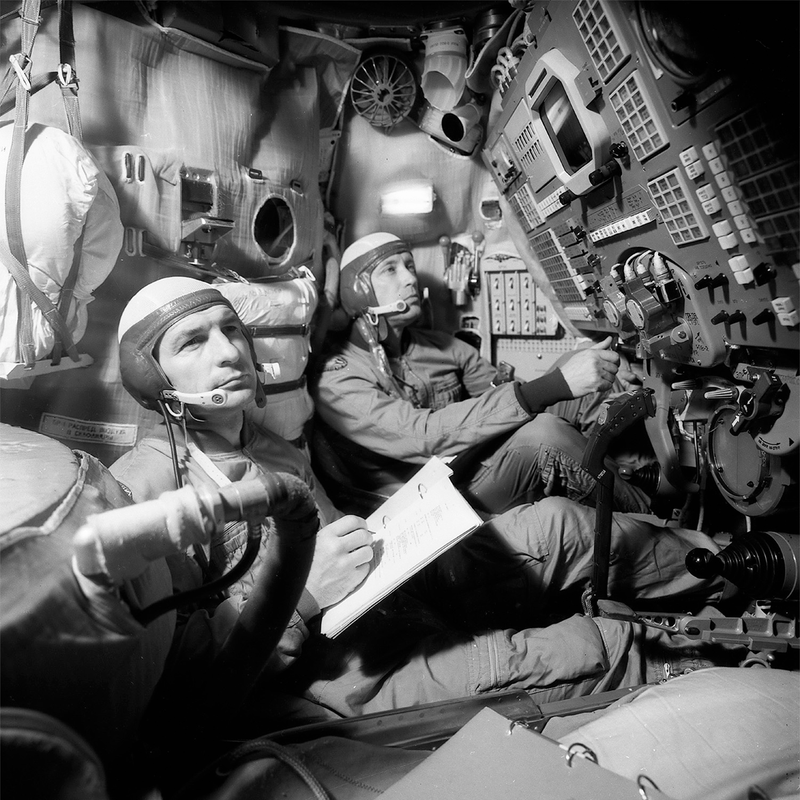

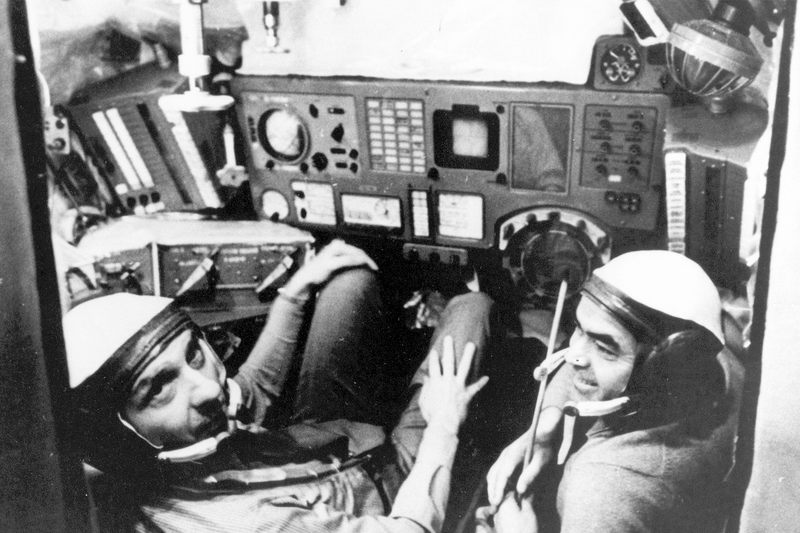

Soyuz (1967–)

Image: NASA
Image: NASA
Image: GTCT

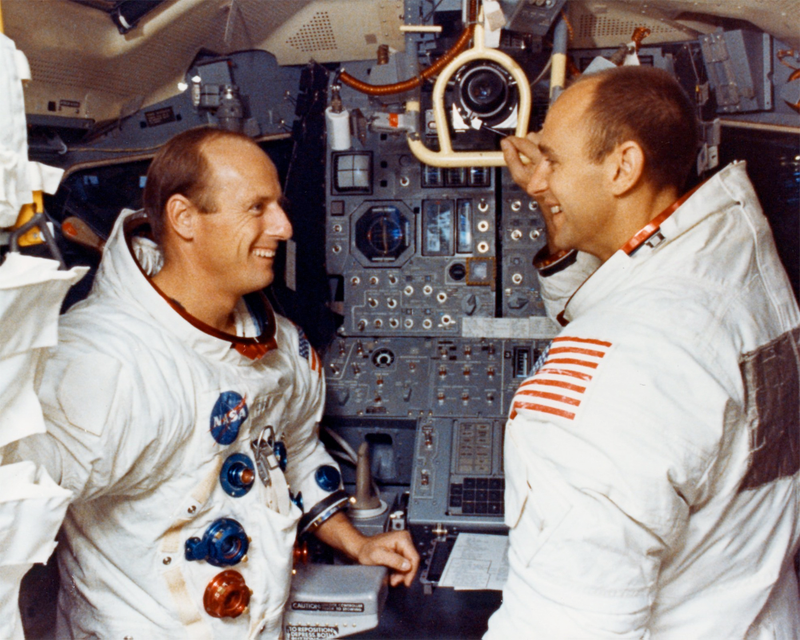

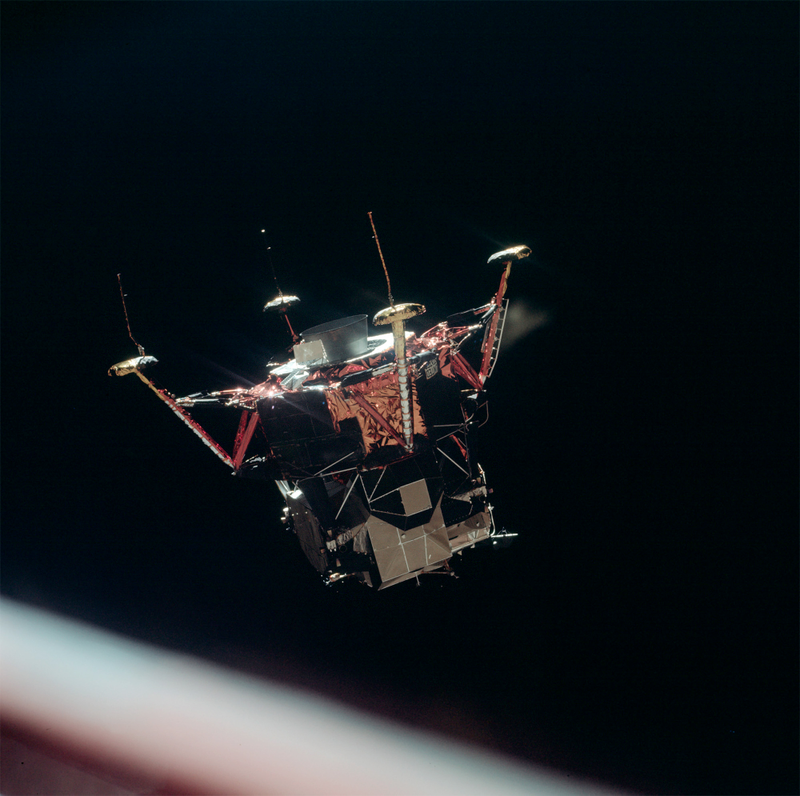

Apollo Lunar Module, 1968-1972

Image: NASA
Image: NASA

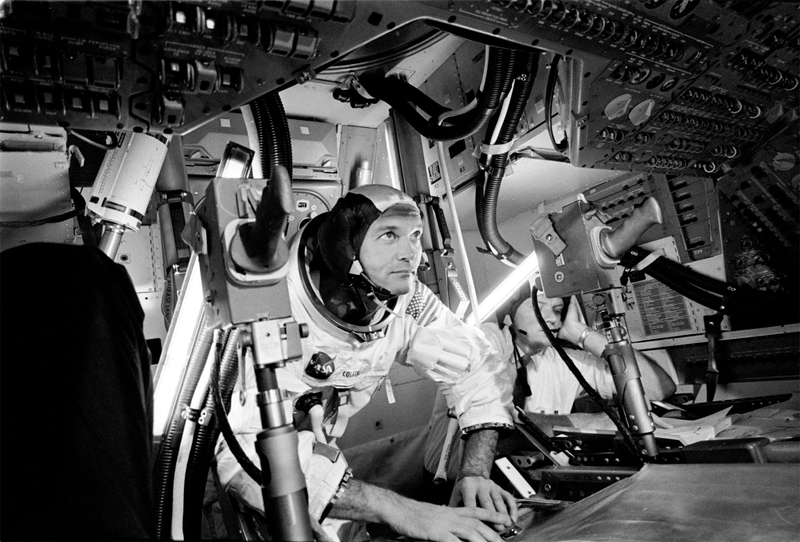

Apollo Command Module, 1968-1973

Image: NASA
Image: NASA

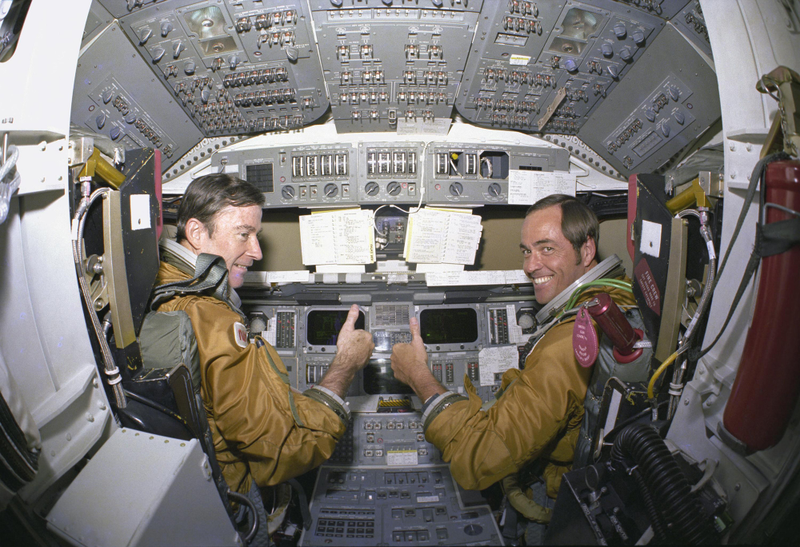

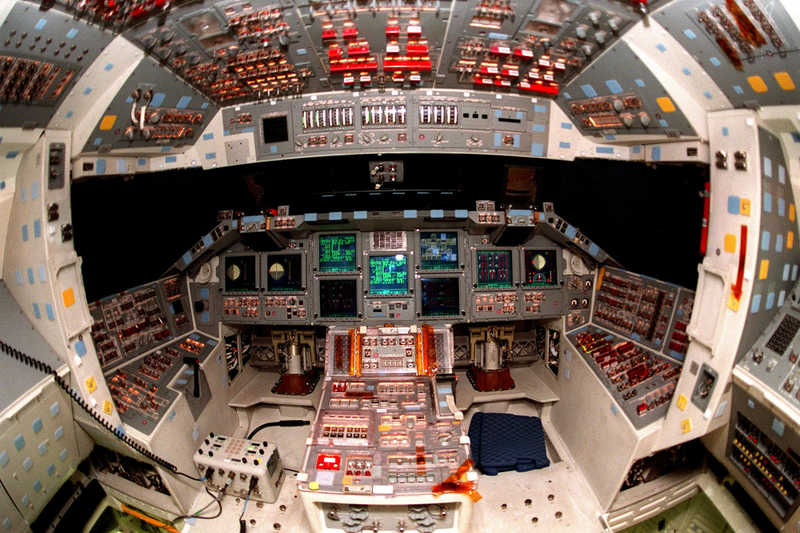

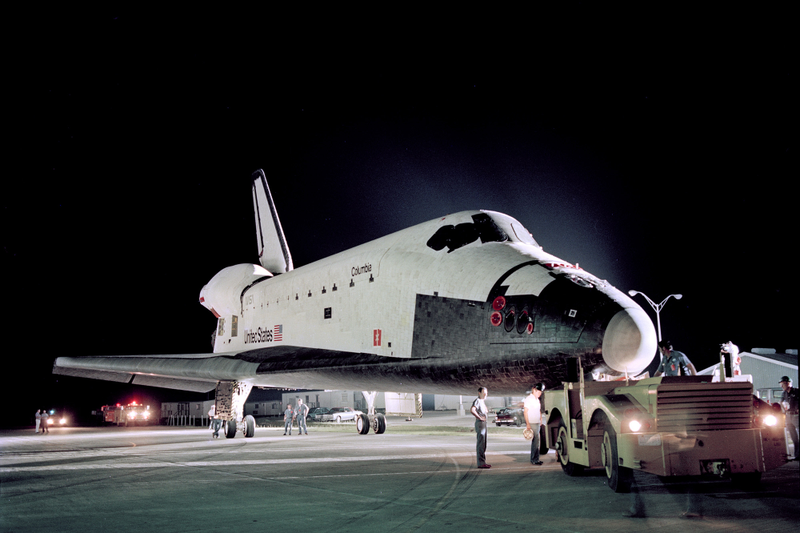

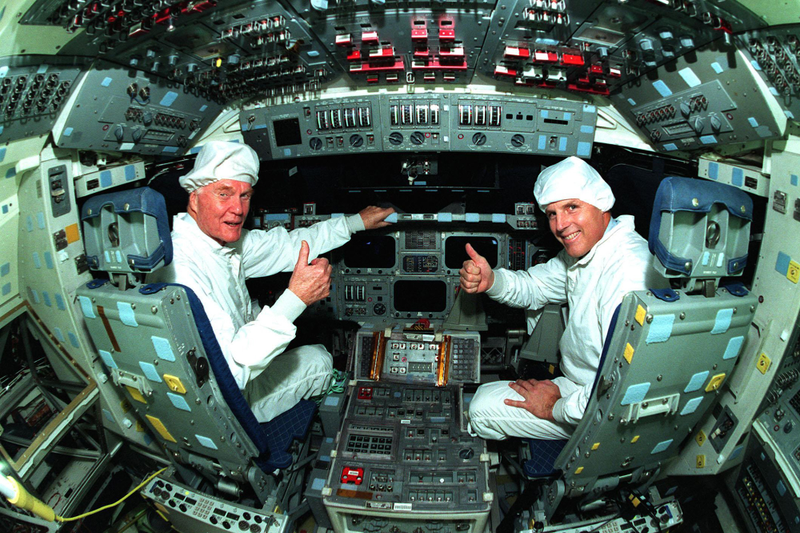

Space Shuttle Columbia cockpit, 1980 and 1998

Image: NASA
Image: NASA
Image: NASA

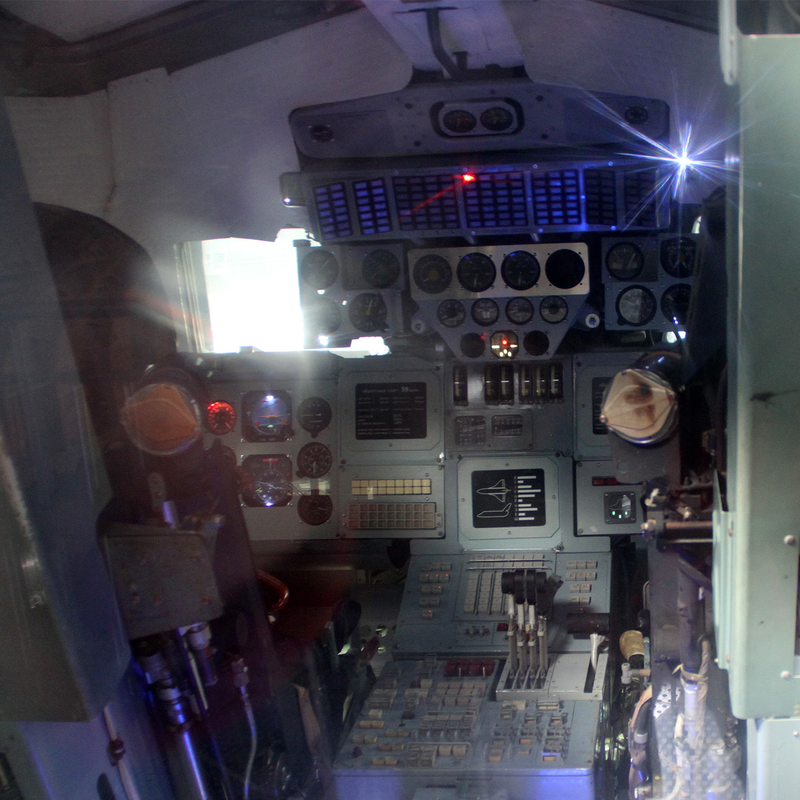

Buran, 1984-1988

Image: Toekneesan
Image: pilot_micha

Space Shuttle Atlantis’ new full-color flat panel Multifunction Electronic Display Subsystem (MEDS), also called the “glass cockpit”, 1999.

Image: NASA
Image: NASA

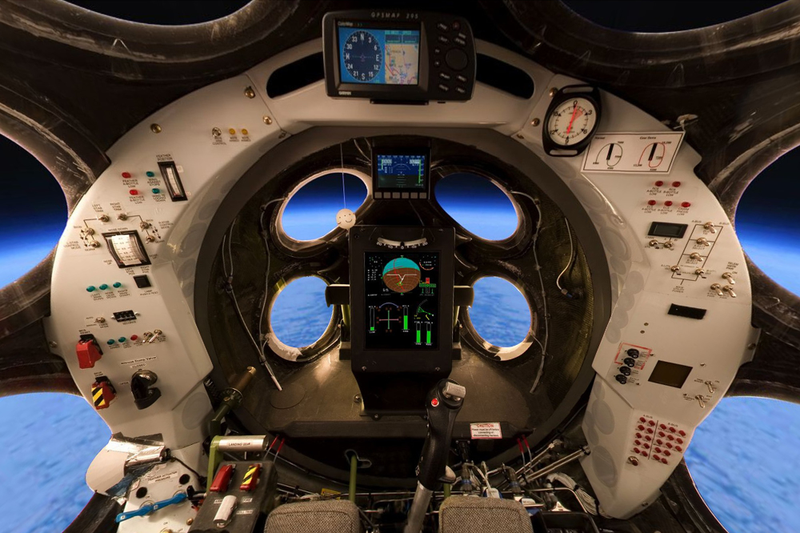

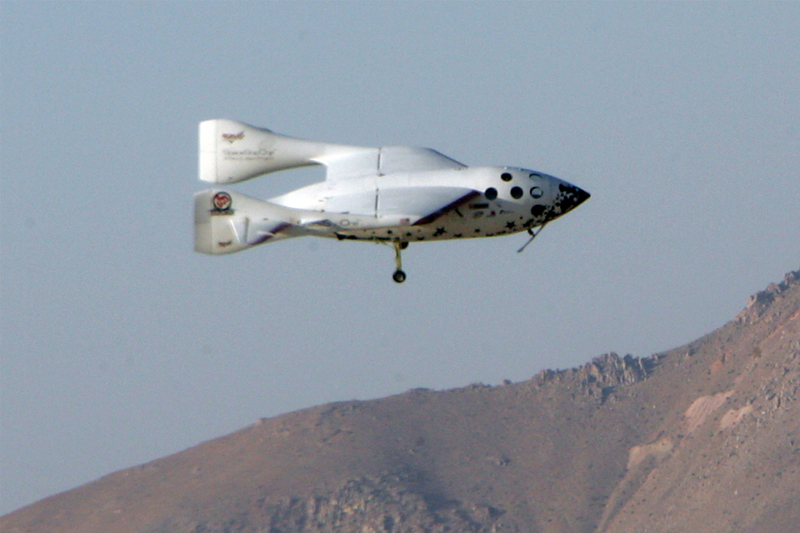

SpaceShipOne, 2003

Image: Jim Campbell/AP

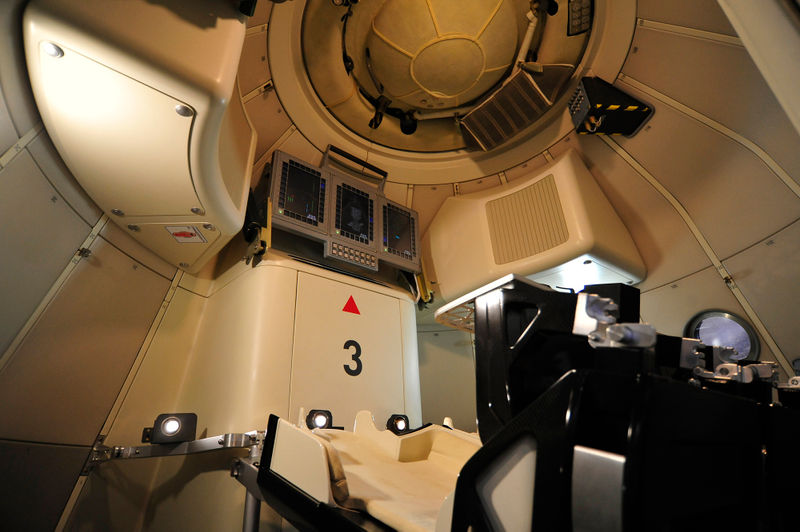

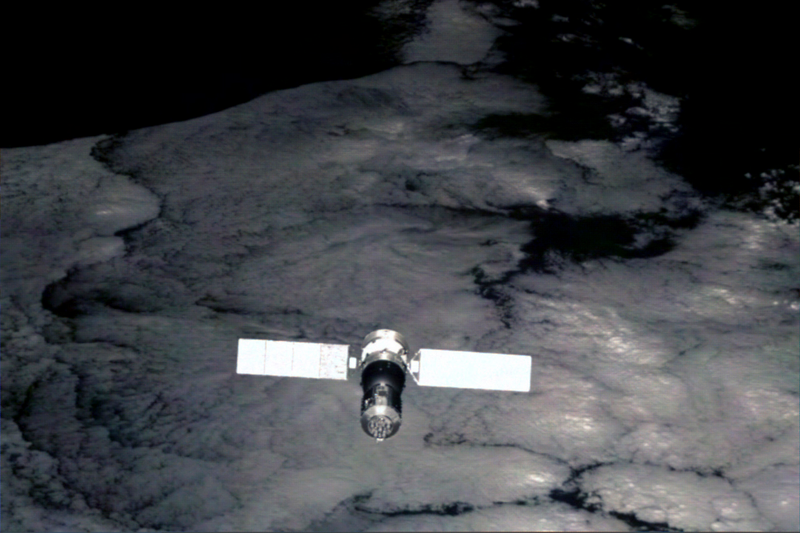

China’s Shenzhou spacecraft, 2008

Image: AP/Xinhua
Image: Xinhua/Qin Xian’an

Space Shuttle Discovery, 2011


Sierra Nevada Corporation’s Dream Chaser, 2013

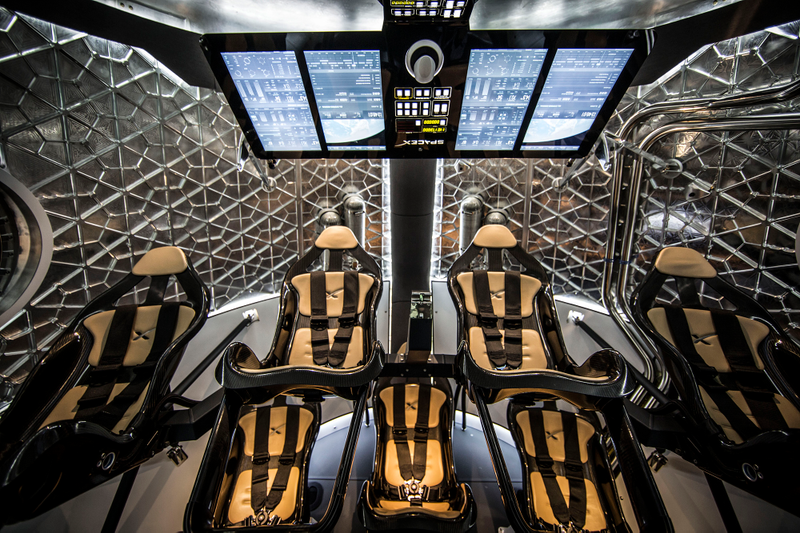

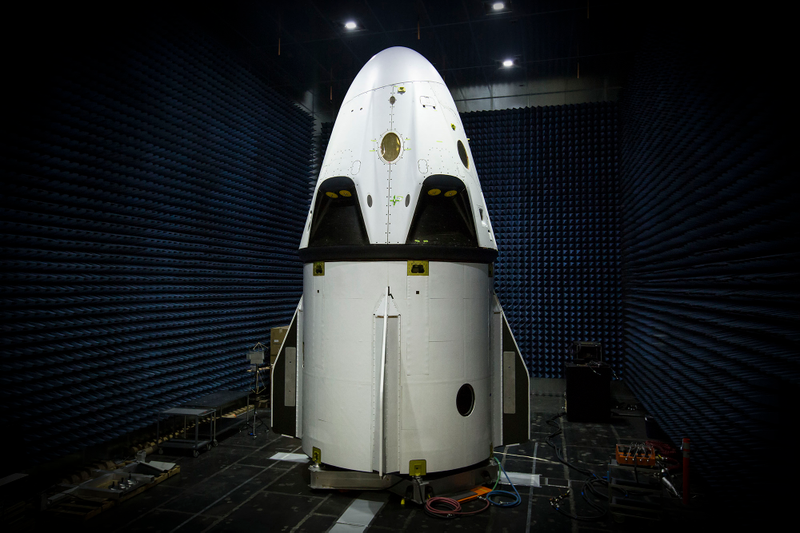

SpaceX Crew Dragon dashboard, 2014

Image: SpaceX
Image: SpaceX
Image: SpaceX

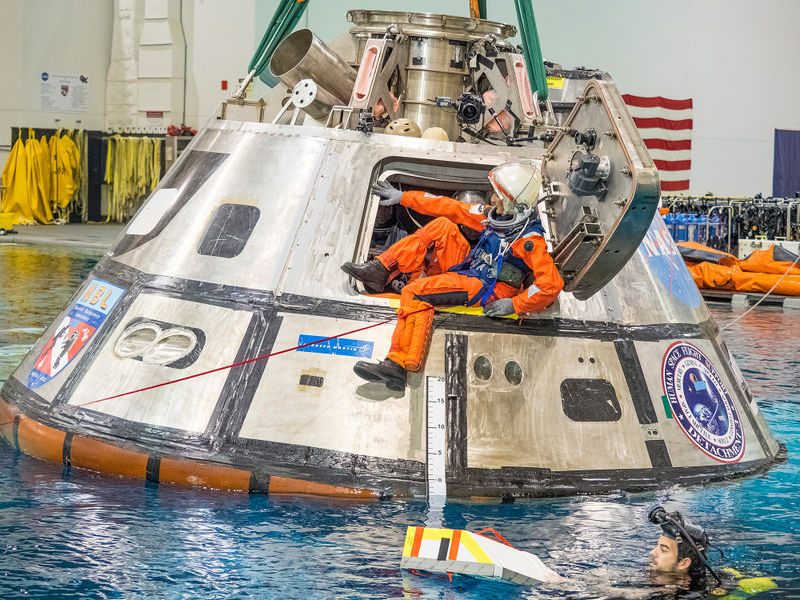

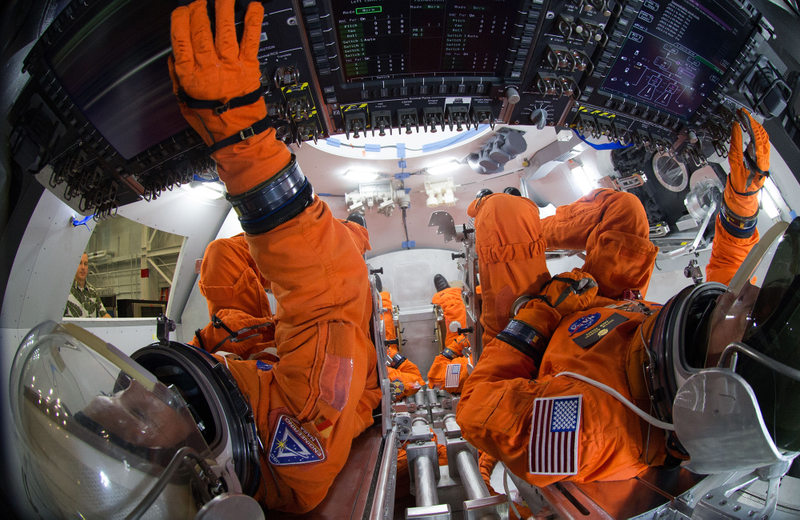

NASA Orion Spacecraft cockpit, 2014

Image: NASA

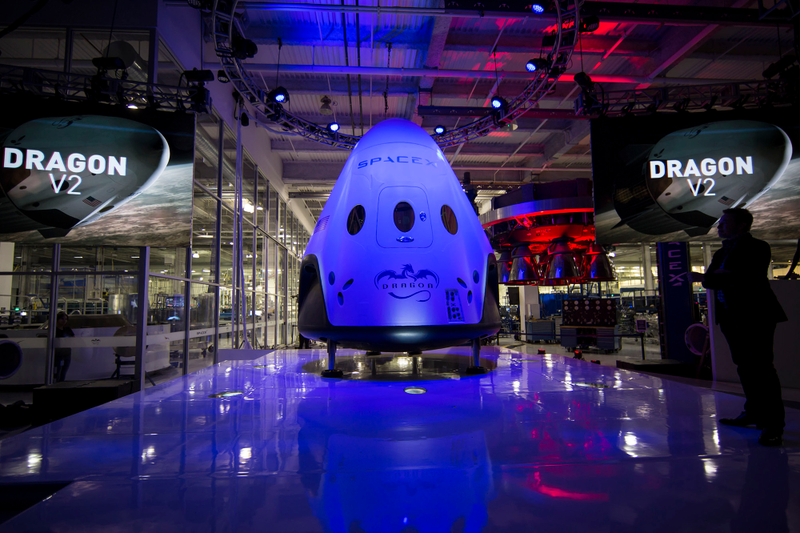

SpaceX Crew Dragon dashboard as of June 11, 2015

Image: SpaceX
Image: SpaceX/SpaceX

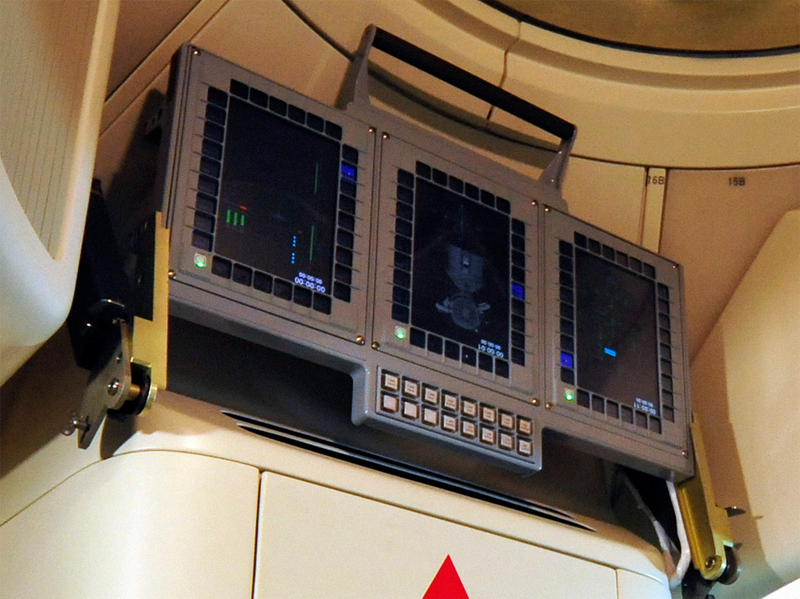

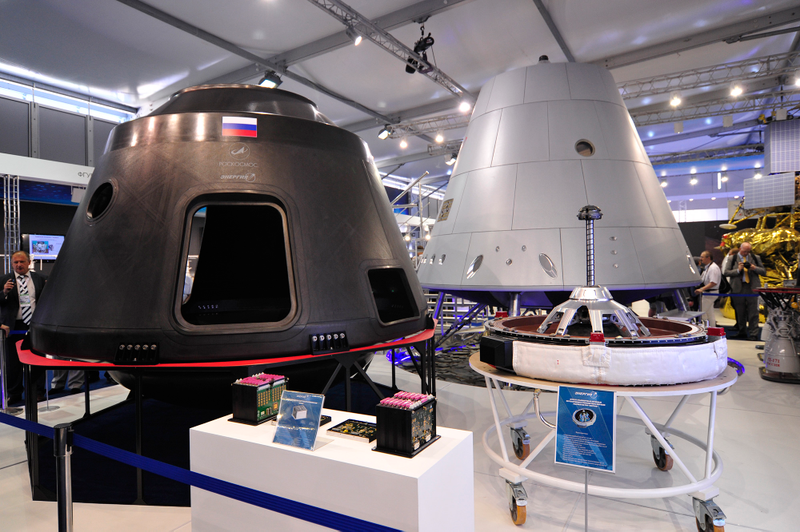

Russia’s Federation spacecraft, Roscosmos’ next generation Soyuz-TMA replacement, 2015.

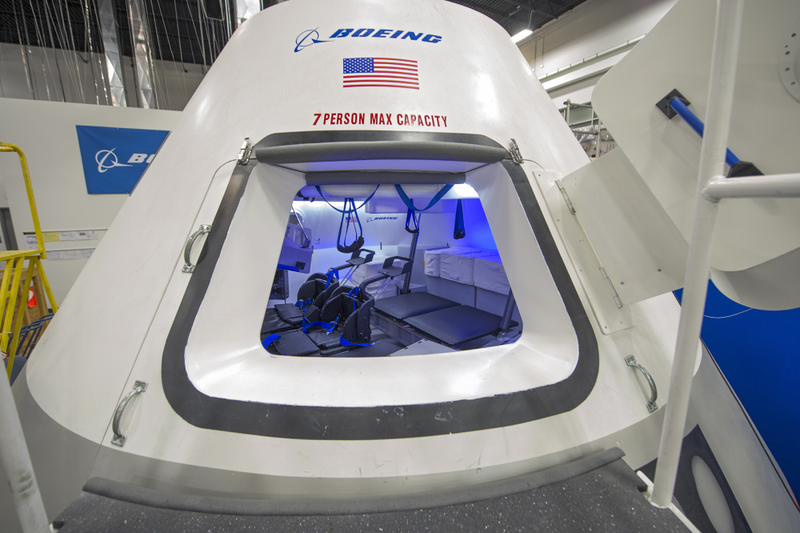

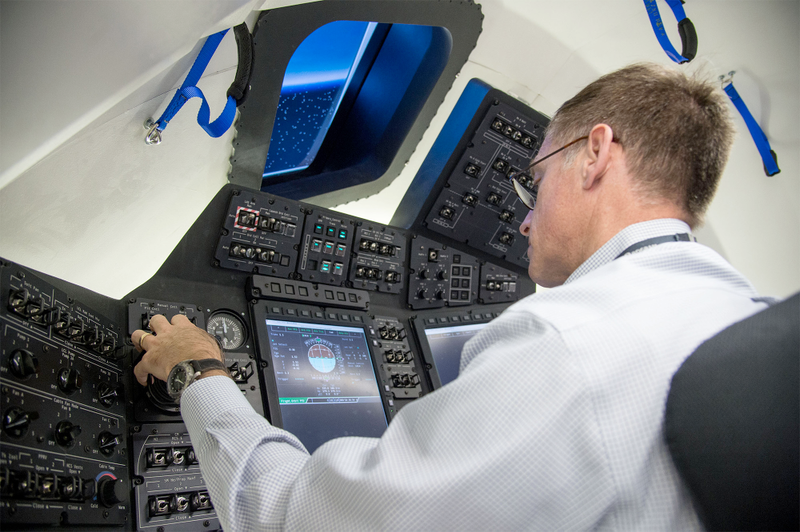

Boeing CST-100 Starliner, 2015.

Image: Boeing/NASA
