NASA's Moon-Bound Geology Lab that Never Quite Got Off the Ground

The rigor of operating outside the atmosphere has often led to rather outlandish NASA vehicle designs, but few have been more alien than this mobile lunar field laboratory from the heyday of the Space Age. Shame it never actually made it past New Mexico.

We had such big plans for the moon. After the crew of Apollo 11 set foot on our nearest celestial neighbor, NASA set its sights on more in-depth missions, further exploration of the lunar surface, and eventually even a permanent moon base. Part of the initial thrust of this plan involved longer missions lasting up to two weeks away from a primary research site. But rather than try to stuff a fortnight's worth of oxygen and supplies into a space suit, NASA developed the MOLAB, a roving laboratory that doubled as an artificial habitat for astronauts in the field.

NASA's Moon-Bound Geology Lab that Never Quite Got Off the Ground

Development on the MOLAB began in 1963 as an Apollo Logistics Support System. GM designed and constructed the mobile lab over the course of the next year under contract with NASA. The MOLAB, which was powered by a modified Corvair engine, can could accommodate a pair of astronauts within its 13 square meter cabin for up to two weeks, though modifications to the loadout and subsystems would also have allowed the MOLAB to handle three astronauts for a shorter duration or travel further afield by carrying fewer supplies.

Per the GM website:

GM completed the MOLAB (or "MGL" for "Mobile Geological Laboratory") in 1964 for NASA's use in the Apollo astronaut program. It was built and developed by GM engineer Vic Hickey and is one of the most unusual Corvair-powered vehicles ever built. NASA used MOLAB for seven years, developing moon suits for the Apollo astronauts (who actually trained in and drove MOLAB in the New Mexico desert). It was loaned to the U.S. Geological Survey and performed groundbreaking work mapping mineral deposits and taking soil samples.

The MOLAB marked an important milestone in rover technology, representing our ambitious lunar goals, however its fate was tied inextricably to the development of additional support systems. Like an actual lunar base. When permanent plans for lunar colonization fizzled, so to did the need to get around up there.

Additionally, the size of the MOLAB (20 feet tall, 8200 pounds) made it difficult to transport into space; it could only ride aboard a Saturn V. A shortage of these rockets in the late 1960s eliminated the only off-world route these rovers could take. But rather than simply scrap the MOLAB prototype it already had, NASA instead loaned it out to the USGS, which used it for a number of ground-breaking geological studies throughout the American Southwest. The MOLAB project was cancelled completely by 1968 and the only surviving prototype can now be seen at the US Space and Rocket Center in Louisiana. [Hemmings - Wiki - Falsesteps - Spaceref]

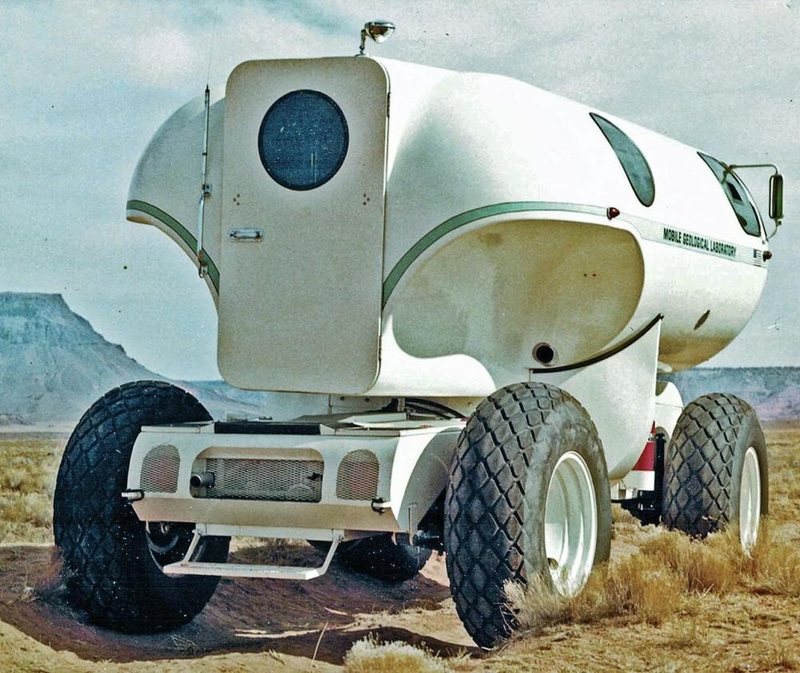

Top Image: Mobile Laboratory (MOLAB) or Mobile Geologic Laboratory (MGL) designed for NASA by General Motors in 1965 for NASA as a prototype, extended lunar mission vehicle; (a) (l to r) Hal Stephens, Ivo Lucchitta, Bill Tinnin, Bob Sutton and two others (unidentified) standing in front of MOLAB; USGS photo USGS Open-File Report 2005-1190, Figure 023a.
