The effects of the most esoteric physics abound throughout your life. Take quantum mechanics, the theory that describes how tiny things behave. It’s everywhere! How else would you get so much data on a palm-sized terabyte hard drive?

An international team of physicists, including many from IBM, have now taken storage down to the smallest level, by using magnetism to encode data on single atoms. The research is a proof of concept and probably won’t appear in your portable hard disk any time soon, but could have important applications for the future of computing.

The scientists are really trying to push computing technology to its physical limit. “Many of us are curious about how large, how fast, how small our world can be,” study author Fabian Natterer told Gizmodo in an email. “The single atom bit provides answers to that curiosity.”

Advertisement

Natterer’s work build on previous efforts to create single-atom magnets. He started with holmium, one of the stranger elements on the periodic table. Lots of the electrons orbiting holmium’s nucleus buzz around without a partner, unlike more familiar elements, he explained. Single electrons have innate magnetic properties, because they’re essentially spinning electrical charges (not literally spinning—they have a quantum mechanical property, called spin, which is described by equations that look a lot like the equations of a spinning object). Magnetic fields arise from moving electric fields. Normally, these tiny magnetic fields would cancel out in paired electrons, but in elements like holmium, all those single electrons’ fields line up.

That can turn the atoms into little metastable magnets, meaning they’re stable unless they get a kick, which can cause magnetic field to flip directions.

The researchers embedded these holmium atoms in a metal, in this case magnesium oxide, which prevents holmium’s magnetic field from falling apart under the influence of other electrons or vibrations . That means it takes a stronger kick to flip each holmium atom’s magnetic field around. That lets these atoms “store” a field orientation for a long time. Much like a computer’s zeroes and ones, the orientation of that field encodes binary information. Essentially, the atoms themselves become a unit of data, called a bit.

Advertisement

Using a so-called “scanning tunneling microscope” as the read head (like the needle of a record player) Natterer and his colleagues manipulated pairs of holmium atoms with tiny electric currents to store two bits worth of information, or four values. The atoms maintained their field orientation for a long time without flipping, meaning they proved a good storage medium.

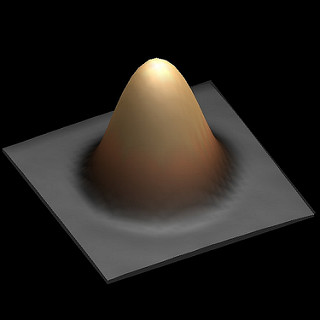

Image: IBM

“For me, the most exciting part was that the holmium atoms never reversed their magnetization,” said Natterer. He and his colleagues published their results yesterday in the journal Nature.

Here come the caveats: No, you won’t see a single-atom storage drive in the OfficeMax catalogue tomorrow. “I don’t think single-atom mass memories are viable in at least in the near future,” Pietro Gambardella, Head of Magnetism and Interface Physics ad ETH Zürich whose group works on these single-atom magnets, told Gizmodo. “I wouldn’t make a hard drive with a collection of single atoms. These atoms tend to move, and all these studies are done at low temperature. So if you warm the surface up to room temoperature then the atoms start to diffuse. You’d need such a memory [storage device] in a fridge.”

Advertisement

Plus, the magnetic tape needed to impart the field flip on these atoms would need to be so precise that any jostle or vibration might screw up the ability to read and write the data, he said.

Instead, Gambardella saw the IBM researchers’ setup as interesting systems to probe quantum computing ideas. After all, the magnetic strip is manipulating an innate quantum property of these holmium atoms—their spin. The real excitement comes from the basic research applications. “As scientists,” said Natterer, “we are... more curious about what we can do with these single atom magnets.”

[Nature]
