Canon Rumors posted what they claim are the specs for the Canon T4i, the successor to the company’s entry-level T3i. And judging from the rumored numbers, any improvements made won’t be quantifiable.
The leak says that the sensor will still be an 18-megapixel APS-C sensor, and video will still be a 1080p at 24 or 30 frames, and 720p at 60 frames. The upper end of the ISO has reportedly received a bump, going from 6400 to 12800, and the max going from 12800 to 25600, so that could suggest improved low light performance. But apparently, it still shoots natively in 3:2, still has a 3-inch LCD, and still has 9-point Autofocus.
Granted, even if the numbers are the same, performance could still be much improved if a new generation of sensors and image processors are implemented. But we’ll have to wait for the official announcement to see if that’s the case. Complete rumored specs are below, for your perusal.
Update: Canon Rumors also posted videos of an alleged Canon T4i with a touchscreen UI. Looks pretty smooth.

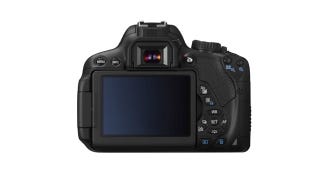

Canon EOS Rebel T4i Specs
The form of digital single-lens reflex, AF / AE camera (flash included)
Recording media SD Memory Card, SDHC Memory Card, SDXC memory card
* UHS-I compliant
Image sensor size 22.3 x 14.9 mm approx.
Canon EF lenses, the lens (EF-S Lens)
(35mm equivalent focal length marked on the lens focal length of approximately 1.6-fold).
Lens Mount Canon EF mount
Image Sensor
Type CMOS sensors
Approximately 18 million pixels Effective Pixels
Aspect Ratio 3:02
Dust features: automatic, manual, dust delete data attached
Recording System
Recording Format Design rule for Camera File system (DCF) 2.0
Image format JPEG, RAW (14bit Canon proprietary method)
Can simultaneously record RAW + JPEG Large
Number of recorded pixels L (Large): Approximately 17.90 megapixels (5184 x 3456)
M (Medium): approx. 8.00-megapixel (3456 x 2304)
S1 (Small 1): Approx 4.50 megapixels (2592 x 1728)
S2 (Small 2): Approx 2.50 megapixels (1920 x 1280)
S3 (Small 3): Approximately 350,000 pixels (720 x 480)
RAW: Approximately 17.90 megapixels (5184 x 3456)
Shooting image processing
Picture Style Auto, Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Def. 1-3
Select expression functions: shooting environment by choosing, depending on lighting and shooting scene
White Balance Auto, Preset (Daylight, Shade, Cloudy, Tungsten light, White fluorescent light, Flash), Custom
White balance correction and white balance bracketing features
* Flash color temperature information for communication
Prolonged exposure and ISO noise reduction can be applied to shooting with high sensitivity
Auto Lighting Optimizer automatically calibrate the brightness of the image
Highlight tone Priority
Ambient light correction lens aberration correction, chromatic aberration correction
Viewfinder
Type Eye-level pentaprism
Coverage Vertical / Horizontal approx 95% (approximately eyepoint 19mm)
Magnification approximately 0.85x (with 50mm lens at infinity -1 m-1)
Eyepoint approximately 19 mm (-1 m-1 from eyepiece lens center at)
Built-in diopter adjustment of about -3.0 – +1.0 m-1 (dpt)
Focusing Screen Fixed, Precision Matte
Mirror Quick-return type
Provide depth of field preview
Autofocus
Type of image-registration, phase detection TTL 2
Nine cross-type AF points AF points (f/2.8 at the center AF point detects cross-type AF)
Focusing brightness range EV-0.5-18 (23 ° C in, ISO 100)
AF operates One-Shot AF, AI Servo AF, AI Focus AF
Continuous built-in flash AF assist lamp flashes by
Exposure Control
Metering modes 63-zone TTL full aperture metering
Evaluative metering (linkable to any AF point)
Partial metering (approx. 9% of viewfinder at center)
Spot metering (approximately 4% of viewfinder at center)
Center-weighted average metering
Metering range EV 1 – 20 (23 ℃, ISO 100)
Exposure Control Program AE (Auto Intelligent Scene, Flash Off, Creative Auto, Portrait, Landscape, Close-up, Sports, Night Portrait,
Night shooting without a tripod, HDR backlight compensation, Program), shutter-priority AE, Aperture Priority AE, Manual Exposure
ISO sensitivity (Recommended Exposure Index) Basic Zone modes: ISO 100 – 3200 range is assigned automatically by
* Portrait: ISO 100, shooting without a tripod at night: ISO 100 – 12800 automatically sets the
Creative Zone modes: ISO 100 – 12800 in the range specified in the manual (1 stop increments), ISO 100 – 6400 range, automatically assigned,
ISO sensitivity up to ISO can be set automatically or ‘H’ (ISO 25600 equivalent) to the ISO extension
Manual Exposure Compensation 1/3 or 1/2 stop increments ± 5 stops
AEB: 1/3 or 1/2 stop increments ± 2 stops (in conjunction with manual exposure compensation possible)
AE Lock Automatic: When focus is achieved with evaluative metering applies in One-Shot AF mode
Manual: AE lock button and use the
Shutter
Format electronically controlled focal-plane shutter
Shutter Speed 1/4000 seconds to 1/60 sec (Scene Intelligent Auto mode), 1/200 sec X – Sync.
* If you use wide-angle lens, a shutter speed of 1/60 sec or less can be. 1/4000 to 30 seconds, bulb
(Total shutter speed range. Shutter speed range varies by shooting mode.)
Flash
Built-in Flash Auto pop-up flash
Guide No.: About 13/43 (ISO 100, m / ft)
Flash Range: 17mm lens angle of about
Charging time about 3 seconds.
Provides wireless master unit
EX-series Speedlite external flash (the camera flash functions can be set in).
Flash metering E-TTL II auto flash
Flash Exposure 1.3 or 1.2 stop increments ± 2 stops in
FE lock available
No PC terminal
Drive System
Drive mode, every shot, continuous shooting, 10 seconds or 2-second delay self-timer, continuous shooting 10-second delay
Continuous shooting speed up to about 5 frames / sec.
Continuous shooting JPEG Large / Fine: Approx 22 (30) each
RAW: approximately six (6) every
RAW + JPEG Large / Fine: Approx 3 (3) every
* Figures with 8GB card Canon testing standards (ISO 100, ‘Standard’ Picture Style) is based.
* The figures in parentheses UHS-I compatible with the 8GB card is based on Canon testing standards.
LCD Monitor
Type TFT color LCD monitor
Monitor size and dots wide, 7.7cm (3.0 inch) (3:02), approximately 1.04 million dots
Angle can be adjusted
Adjust the brightness manually (step 7)
25 language interface languages
Capacitive sensing touch screen technology
Feature can be displayed
Playback
Image Display Format Single, Single image + information (basic information, the shooting information, histogram), four each index, every index of 9, the image can be rotated
Approximately zoom 1.5x – 10x
Live View shooting
Set Aspect Ratio 3:2, 4:3, 16:9, 1:1
Hybrid CMOS AF focusing system * (+ tracking, FlexiZone-Multi, FlexiZone-Single), phase difference detection method (quick mode)
Manual focus (approximately 5x / 10x magnification possible)
* Focusing brightness range: EV 1-18 (23 ℃ in, ISO 100)
Continuous AF can
Can touch the shutter
Real-time image sensor Metering mode Metering
Evaluative metering (315 segments), partial metering (approximately 8.8% of the Live View screen), spot metering (approximately 2.8% of the Live View screen), Center-weighted average
Metering range EV 0 – 20 (23 ℃, ISO 100)
Display two kinds of lattice
Video recording
MPEG-4 AVC/H.264 video compression
Variable (average) bitrate
Linear PCM audio recording format
MOV video recording format
Record the size and
Frame Rate 1920×1080 (Full HD): 30p/25p/24p
1280×720 (HD): 60p/50p
640×480 (SD): 30p/25p
* 30p: 29.97 fps, 25p: 25.00 fps, 24p: 23.976 fps, 60p: 59.94 fps, 50p: 50.00 fps
File size 1920×1080 (30p/25p/24p): approximately 330 MB / minute
1280×720 (60p/50p): approximately 330 MB / minute
640×480 (30p/25p): Approximately 82.5 MB / minute
Hybrid CMOS AF focusing system * (+ tracking, FlexiZone-Multi, FlexiZone-Single)
Manual focus (approximately 5x / 10x magnification possible)
* Focusing brightness range: EV 1-18 (23 ℃ in, ISO 100)
Evaluative metering with image sensor Metering mode and center-weighted pyeonggyuncheukgwang
* Set the focusing mode automatically, depending on
Is Servo AF
Metering range EV 0 – 20 (23 ℃, ISO 100)
Exposure Control Program AE and Manual Exposure for Video
Exposure Compensation 1.3 stop increments ± 3 stops (stop pictures: ± 5 stops).
ISO sensitivity
(Recommended Exposure Index) Auto exposure shot: ISO 100 – 6400 within the scope of the automatic setting manual exposure, ISO 100 – 6400 within the auto / manual settings,
H (ISO 12800 equivalent), expandable to
Video Snapshot 2 seconds / 4 seconds / 8 seconds can be set
Built-in Stereo Microphone Recording
Provides an external stereo microphone jack
Adjustable recording level, wind filter, providing
Attenuator provides
Display two kinds of lattice
Flashing warning highlights overexposed highlight areas
How a single image, image display, image 100 sheets of 10 hawk jump, jump a CAT scan, folder, jump, jump video, still images, jump, jump grade
Images can be rotated
Provided ratings
Videos can be played (LCD monitors, video / audio output, HDMI OUT)
Built-in Speaker
Images can be protected
All images slide show, date, folder-, video, still images or five kinds of transitions can be selected rating
Background music for slideshows and video playback can be selected
Image processing
Coarse filter effects, monochrome, soft focus, fisheye lens effect, painting effects, color effects, and toy camera effects and miniature effects
Can be resized
Direct Printing
Compatible with PictBridge-compatible printer, the printer
Printable images JPEG and RAW images
Compatible with DPOF version 1.1 of the print command
User Settings
8 kinds of user-defined functions
My menu can be registered
Copyright information can be entered and stored
Interface
Audio / Video output /
Digital terminal analog video (NTSC / PAL selectable) / stereo audio output
PC communication and direct printing (Hi-Speed USB), GPS Receiver GP-E2 connection
HDMI mini OUT terminal C-type (resolution, auto-switching), CEC-compatible
The external microphone input terminal
3.5mm diameter stereo mini-jack
Remote Switch RS-60E3 Remote Control for Terminals
Remote Controller RC-6 Wireless Remote Control compatible
Eye-Fi card can be used
Power
Battery Battery Pack LP-E8 (1 reviews)
* AC power via AC Adapter Kit ACK-E8 can be used.
* With Battery Grip BG-E8 AA-size when attaching / LR6 batteries can be used.
Battery Life
(CIPA test standards basis)
Viewfinder when shooting: 23 ℃ approximately 440 sheets, 0 ℃ approximately 400 sheets
Live View shooting: 23 ℃ approximately 180 shots, 0 ℃ approximately 150 sheets
Video recording time approximately 1 hour and 40 minutes at 23 ℃
About 1 hour and 20 minutes at 0 ℃
(Fully charged Battery Pack LP-E8 is used)
Size and Weight
Dimensions (W x H x D) 133.1 x 99.8 x 78.8 mm approx.
Weighs about 575 g (CIPA guidelines), approximately 520 g (body only)
Operating Environment
Operating temperature range 0 ℃ ~ 40 ℃
Operating Humidity 85% or less
Battery Pack LP-E8
Type of rechargeable lithium-ion battery
Rated voltage 7.2 V DC
1120 mAh battery capacity
Operating temperature range when charging: 6 ℃ ~ 40 ℃
Shooting: 0 ℃ ~ 40 ℃
Operating Humidity 85% or less
Dimensions (W x H x D) Approx 37.1 x 15.4 x 55.2mm
Weight about 52g
Battery Charger LC-E8
Compatible Battery Battery Pack LP-E8
Charging time Approximately 2 hours (23 ° C in a)
Rated input / output rated input: 100 – 240 V AC (50/60 Hz)
Rated output: 8.4 V DC / 720mA
Operating temperature range 6 ° C ~ 40 ° C
Operating Humidity 85% or less
Dimensions (W x H x D) Approx 69 x 28 x 87.5mm
Weight about 82
Battery Charger LC-E8E
Compatible Battery Battery Pack LP-E8
Charging time Approximately 2 hours (23 ℃ in a)
Rated input / output rated input: 100 – 240 V AC (50/60 Hz)
Rated output: 8.4 V DC / 720mA
Operating Temperature Range 6 ℃ – 40 ℃
Operating Humidity 85% or less
Dimensions (W x H x D) Approx 69 x 28 x 87.5mm
Weight about 82g
* All data above Canon’s testing standards and CIPA (Camera Imaging Products Association) testing standards and guidelines is based on.
* Size listed above, the maximum diameter, length and weight guidelines is based on the CIPA (Camera Body Weight excluded).
* Product specifications and appearance are subject to change without notice.
* From the lens of the camera attached to a third party if a problem occurs, please contact the appropriate lens manufacturer.
