Oh Titan, you are a beautiful, intriguing moon!

This composite image uses infrared light to look at the surface of Saturn’s moon during a recent flyby by the Cassini spacecraft. It’s a look at the Saturn-facing hemisphere of Titan in the late spring.


What are we looking at? The dark, sideways-H-shaped area represents the parallel regions of Fensal, to the north, and Azland, to the south. Both are filled with dunes. Above-center is Menrva, Titan’s largest confirmed impact crater. The highly-reflective region to the bottom left is Xanadu, a possible tectonic feature criss-crossed with lineaments. Near Xanadu closer to the equator is Hotei Regio, the best evidence for slushy cryovolcanism on the moon.

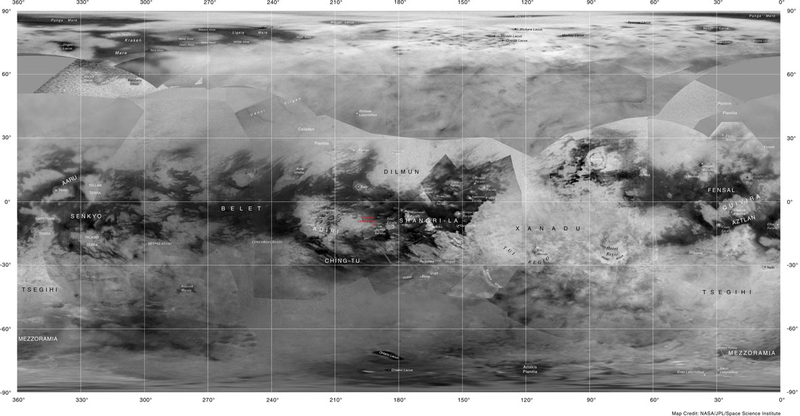

Named features on Titan. Image credit: NASA/USGS

Titan has a thick atmosphere that blocks visible light. Lucky for Cassini, Titan is relatively cool, so the spacecraft can peer through the haze with near-infrared light to see surface details. Because we can’t see infrared light, the image has been re-colored to the visible spectrum with 1.3 microns mapped to blue, 2.0 microns to green, and 5.0 microns to red.

Titan in visible wavelengths in May 2011, with the opaque haze obscuring the surface. Image credit: NASA/JPL-Caltech/Space Science Institute


Parts of the composite are in greater detail than the rest of the moon. These subframes were captured during the closest approach of the flyby, allowing for the greatest resolution. This particular flyby was at an unusually high altitude, staying more than 6,200 miles (10,000 kilometers) away instead of the usual 750 miles (1,200 kilometers) away. While this sacrifices detail, it allows for a moderate resolution of a few miles per pixel over wider areas.

This composite of Titan was captured during the T-114 flyby on November 13, 2015. Cassini is on its farewell tour of the Saturn system, making final flybys before crashing into the gas giant in late 2017.

Top image: Composite image of Titan seen by the Cassini spacecraft on November 13, 2015 during the T-114 flyby of Saturn’s moon. Credit: NASA/JPL/University of Arizona/University of Idaho
