What Are Fractals, And Why Should I Care?

Fractal geometry is a field of math born in the 1970s and mainly developed by Benoit Mandelbrot. If you've already heard of fractals, you've probably seen the picture above. It's called the Mandelbrot Set and is an example of a fractal shape.

This article originally appeared on George Dallas's blog, which you should absolutely go check out. It is reprinted here with George's permission.

The geometry that you learned in school was about how to make shapes; fractal geometry is no different. While the shapes that you learned in classical geometry were 'smooth', such as a circle or a triangle, the shapes that come out of fractal geometry are 'rough' and infinitely complex. However fractal geometry is still about making shapes, measuring shapes and defining shapes, just like school.

There are two reasons why you should care about fractal geometry:

1. The process by which shapes are made in fractal geometry is amazingly simple yet completely different to classical geometry. While classical geometry uses formulas to define a shape, fractal geometry uses iteration. It therefore breaks away from giants such as Pythagoras, Plato and Euclid and heads in another direction. Classical geometry has enjoyed over 2000 years of scrutinisation, Fractal geometry has enjoyed only 40.

2. The shapes that come out of fractal geometry look like nature. This is an amazing fact that is hard to ignore. As we all know, there are no perfect circles in nature and no perfect squares. Not only that, but when you look at trees or mountains or river systems they don't resemble any shapes one is used to in math. However with simple formulas iterated multiple times, fractal geometry can model these natural phenomena with alarming accuracy. If you can use simple math to make things look like the world, you know you're onto a winner. Fractal geometry does this with ease.

This blog post shall give a quick overview of how to make fractal shapes and show how these shapes can resemble nature. It shall then go on to talk about dimensionality, which is a cool way to measure fractals. It ends by discussing how fractal geometry is also beneficial because randomness can be introduced into the structure of a fractal shape. The post requires almost no math and includes lot of pretty pictures

How to make a fractal shape

In normal geometry shapes are defined by a set of rules and definitions. For instance a triangle consists of three straight lines that are connected. The rules are that if you have the length of all three sides of the triangle it is completely defined, also if you have the length of one side and two corresponding angles the triangle is also defined. Though the rules defining a triangle are simple, huge amounts of useful math has come out of it, for instance Pythagoras' Theorum, sin() cos() and tan(), the proof that the shortest distance between two points is a straight line, etc.

Fractal geometry also defines shapes by rules, however these rules are different to the ones in classical geometry. In fractal geometry a shape is made in two steps: first by making a rule about how to change a certain (usually classically geometric) shape. This rule is then applied to the shape again and again, until infinity. In math when you change something it is usually called a function, so what happens is that a function is applied to a shape recursively, like the diagram below.

What Are Fractals, And Why Should I Care?

After it has repeated an infinite amount of times, the fractal shape is produced. What are these functions then? What do you mean by repeating infinitely? As always, this is best explained by an example…

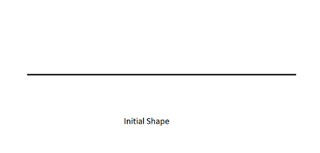

A good fractal shape is called the von Koch curve. The rules, or function, are extremely simple. First you start with a straight line. This is your 'initial shape':

What Are Fractals, And Why Should I Care?

The rules are as follows:

1. Split every straight line into 3 equal segments.

2. Replace the middle segment with an equilateral triangle, and remove the side of the triangle corresponding to the initial straight line.

The process is shown in the figure below:

What Are Fractals, And Why Should I Care?

This is what happens to the straight line, our initial shape, when it goes through the function the first time, the first iteration. Now, the shape it has produced is fed back into the function again for a second iteration:

What Are Fractals, And Why Should I Care?

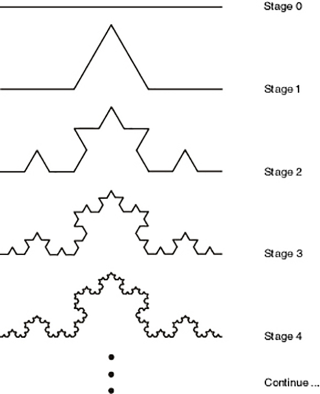

Remember the rule was that any straight line would be split into thirds, so now 4 lines are split up and made into triangles. The shape that is produced after the second iteration is then fed through the function for a third time. This gets hard to draw in MS paint so I've used a couple of pictures from this website for the next few stages:

What Are Fractals, And Why Should I Care?

After this has iterated an infinite amount of times the fractal shape is defined. This may sound bewildering but it is still possible to analyse it mathematically and visually you can see what the shape starts to look like. The gif below (from Wikipedia) is a good illustration of what the curve looks like by zooming in on it:

What Are Fractals, And Why Should I Care?

The von Koch curve is a great example of a fractal: the rule you apply is simple, yet it results in such a complex shape. This kind of shape is impossible to define using conventional math, yet so easy to define using fractal geometry.

So who cares about the von Koch curve? Isn't it just mathematicians wasting time on weird shapes? I guess that depends on how you look at it, but I'm convinced it's useful because it looks exactly like a snowflake. This is made more clear if the initial shape you start with is a triangle rather than a straight line:

What Are Fractals, And Why Should I Care?

There's a whole debate to be had on the purpose of math, but as an Engineer I am inclined to say that one of its purposes is to try and replicate the world around us. The shapes that come out of fractal math are so different to conventional mathematical shapes and so similar to the world around us that I cannot help but be seduced by this topic. Two other shapes that are favorites of mine are the Barnsley Fern:

What Are Fractals, And Why Should I Care?

And fractal trees:

What Are Fractals, And Why Should I Care?

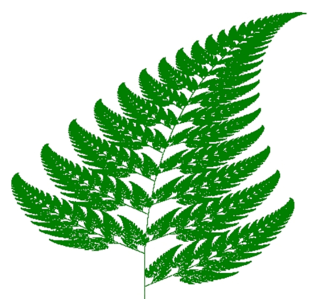

These aren't drawings or pictures, but mathematical shapes. If you look at the shapes you can see what function repeats itself. For instance on the Barsley Fern the function is to draw 30 or so perpendicular lines out of each straight line. The function repeats itself to and looks like a fern. On the tree you can see that each line branches out twice, which will be the function that repeats itself. Another property about these shapes (though strictly not for all fractals) is that they are self-similar. This means that the shape looks like itself however much you zoom in or out. For instance on the tree above, if you snapped a branch off it and stood it up, it would look like the original tree. If you took a twig from the branch and stood it up, it would still look like the original tree. Again, this is a property that occurs in nature, but until fractal geometry there was not a good way to put it into math.

Not only do these shapes look like natural objects, but the process of iteration sounds intuitive when thinking about nature. When a tree is growing, its trunk will create branches, these branches create further branches, these branches create twigs. It's as if the function is a genetic code telling the branch how to grow and repeat itself, eventually creating shapes that are 'natural'. This may sound like pseudo-science (it definitely is) but I think these are concepts worth considering when you are able to imitate nature so closely.

Right enough about nature, time to talk about how fractals have crazy dimensions.

Dimensions

So now we know what fractal shapes are and how to make them, we would like to know a few things about them. One of them first things to try and figure out is the length of some of these shapes. Let's go back to the von Koch curve.

In order to figure out how long the full von Koch curve is (after being iterated an infinite amount of times), it is useful to consider what happens at the first stage again:

What Are Fractals, And Why Should I Care?

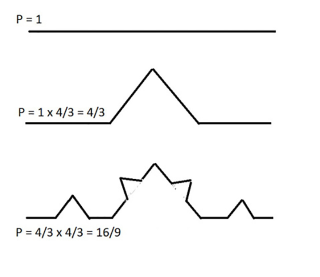

The line is split into three, then the middle section is replaced by two lines that are as long as it (as it's an equal triangle). So if the original straight line had a length of 1, the length of the curve after the first iteration is 4/3. It turns out that every time you iterate the shape, it gets 4/3 longer. So the length of the curve after the second iteration is 4/3 x 4/3 = 16/9:

What Are Fractals, And Why Should I Care?

As 4/3 is greater than 1, the line gets longer every time it is iterated through the function. As you iterate the function an infinite amount of times, the full von Koch curve has a perimeter that is infinitely long! This is the case for all fractal shapes: they have infinitely long perimeters. That isn't useful for mathematicians so they don't measure the perimeter of the shape. Now the next few paragraphs require a bit of abstract thought, but if you think a bit outside the box it does make sense.

The perimeter measures the length around something. Length is a 1 dimensional measure of space. Length is 1D because it only measures a straight line. A 2D measure of space is area, 3D is volume. Now we've shown that it isn't useful to measure fractal patterns in 1 dimension as they are infinitely long, but what is odd is that fractal shapes are not 1D, 2D, or 3D. Each fractal shape has it's own unique dimension, which is usually a number with a decimal place.

The dimension of a fractal shape is a measure of how quickly the shape becomes complicated when you are iterating it. What do we mean by becoming complicated? Well in the von Koch curve you can see that the first few iterations produce quite simple shapes, however at about iteration 4 it starts to become quite small and complex.

The way to measure how fast a shape becomes complicated, and hence its dimension, is to measure how much longer the perimeter gets after each iteration. This makes sense intuitively, as if the line gets much longer after each iteration it is probably becoming very complicated very fast, whereas if the line stays pretty much the same length after each iteration then it probably isn't getting very complex.

As we've already shown, the von Koch curve gets 4/3 longer each iteration. This means that the von Koch curve is 4/3 D, or 1.3333…D. Pretty crazy right? It exists somewhere between 1D and 2D. But this measure is really useful to mathematicians as it gives information about the shape (whereas perimeter doesn't, it's always infinite). For instance if there was another fractal shape which was 1.93D, you could say with confidence that that shape gets complex quicker than the von Koch curve, as the perimeter gets 1.93 times longer after each iteration rather than 1.3333, implying it gets complex more quickly. When studying a fractal shape, knowing its dimension is of integral importance.

Randomness

The last thing I'm going to talk about is the fact that randomness can be inserted into fractal shapes. Random (or seemingly random) events occur in nature all the time and affect different things in a variety of different ways, for instance a large part of Information Engineering is dealing with noise, which randomly fluctuates an electronic signal. When trying to replicate this, you usually add randomness on top of a signal. For instance in electronics you would create a nice sine wave and then add noise on top of it (borrowed from this website):

What Are Fractals, And Why Should I Care?

The bottom image is the 'pure' wave, and the top image is the wave with noise added on. An inherent assumption when doing this is that there is an underlying 'pure' signal which is randomly altered. While this may be true for a lot of electronics, the same cannot be said for nature. Often there isn't a 'pure' shape that is randomly altered around the edges (for instance there are not many fuzzy squares in nature), but rather randomness effects the structure of the shape itself at each stage of its evolution. Classical geometry is not good at incorporating randomness into shapes, whereas fractal geometry can do it easily. For the last time lets turn to the von Koch curve. However this time we will insert randomness into it.

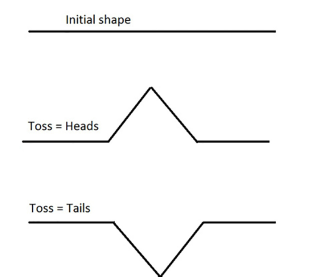

We know the rule is that for each iteration a triangle is created in the middle third of a line. However every time the triangles always faced 'outwards'. We could insert randomness by saying that for each triangle created, it goes either above the line or below the line depending on a coin toss:

What Are Fractals, And Why Should I Care?

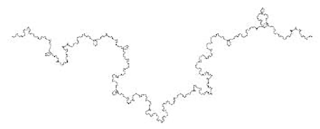

Now the shape will develop at random according to the coin toss. For instance after multiple iterations the von Koch curve can look like this:

What Are Fractals, And Why Should I Care?

Or it can look completely different. What is cool about this is that you can insert randomness into the shape itself rather than adding it on top of an existing shape. This has exciting potential, for instance (going back to nature) this may be a good way to model random genetic mutations.

This blog post has provided a brief introduction to fractal geometry. I hope you've found it interesting!


This article originally appeared on George Dallas's blog. It is republished here with the author's permission.
