Is There Anything Space Balloons Can't Do?

By
Image for article titled Is There Anything Space Balloons Can't Do?

When you're millions of miles from Earth, things need to work—the first time. So rather than rely on failure-prone mechanical systems, these space instruments utilize miniature atmospheres for their protection. Our friends at Oobject have collected the dozen best examples of space inflatables.

Advertisement

Be sure to also check out these grounded satellites, some others from the USSR, and another eight inflatable decoys.

Image for article titled Is There Anything Space Balloons Can't Do?

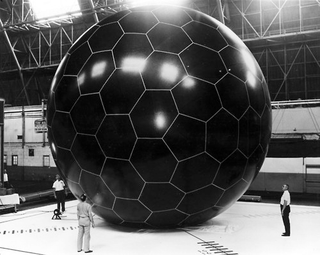

Aluminum geodesic mesh in inflatable disolving plastic sphere satellite

The Mylar Echo satellites didn't stay up long, becuase the suns heat would deform them and slow them down. The answer was this system where a helium inflated plastic sphere would expand a signal reflecting hollow mesh, with the plastic dissolving under the suns rays. The mesh could then stay up for 11 years or so.

Image for article titled Is There Anything Space Balloons Can't Do?

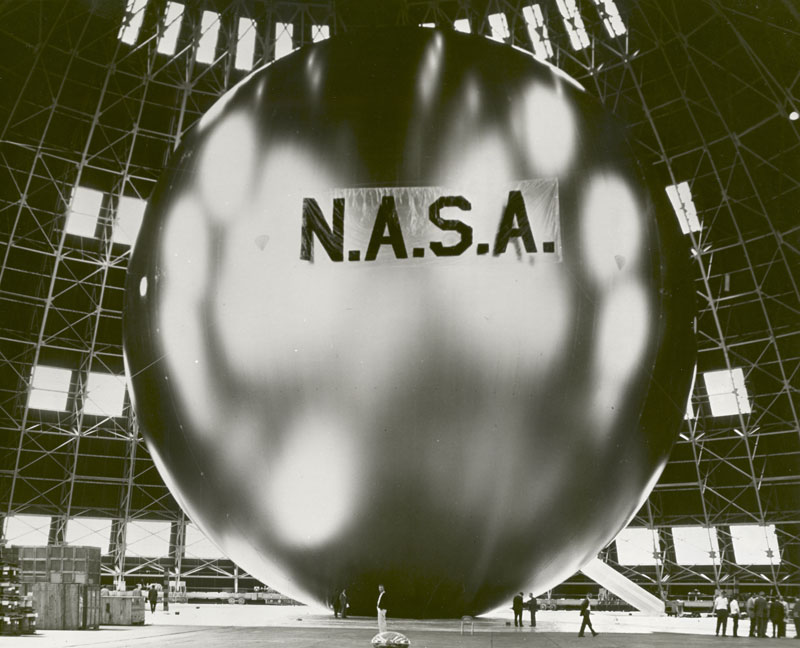

135 ft diameter Inflatable Echo 2 communications satellite

NASA developed mylar for the Echo program. These were inflatable passive communication satellites, i.e. signals were bounced off them to reach places on the other side of the earth.

Advertisement
Image for article titled Is There Anything Space Balloons Can't Do?

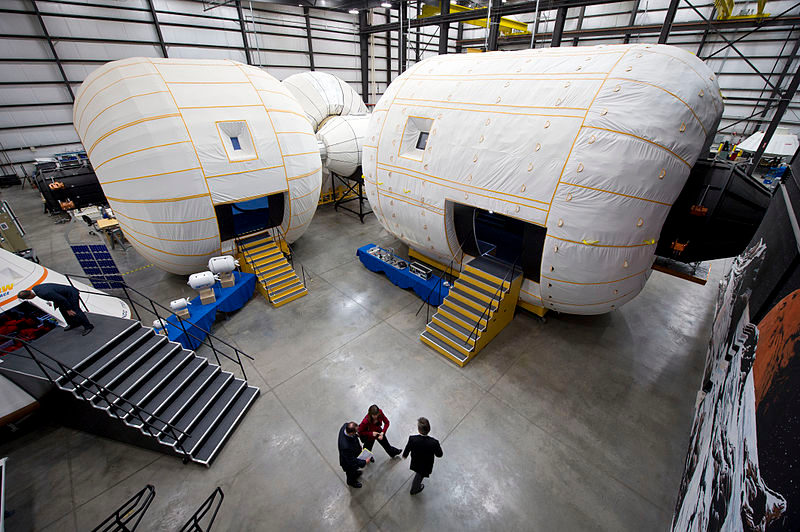

Mockups of future Bigelow Aerospace inflatable habitats

After the successful launch of the Genesis 1, Bigelow hope to be pioneers of large scale inflatable habitats, in space.

Advertisement
Image for article titled Is There Anything Space Balloons Can't Do?

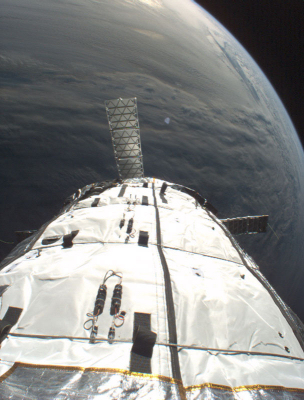

2006 Geneseis 1, Bigelow Aerospace inflatable habitat demonstration

After NASAs inflatable habitat funding was cancelled, a private firm, Bigelow Aerospace, launched the first inflatable habitat prototype, aboard a converted missile in 2006. Genesis 1 is 14ft by 8ft.

Advertisement
Image for article titled Is There Anything Space Balloons Can't Do?

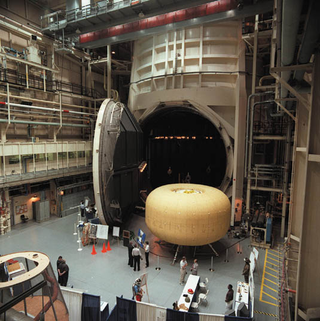

1990s Transhab inflatable replacement for current space station habitation module

Shown here, Transhab prototype at Johnson Space Center

Image for article titled Is There Anything Space Balloons Can't Do?
Advertisement

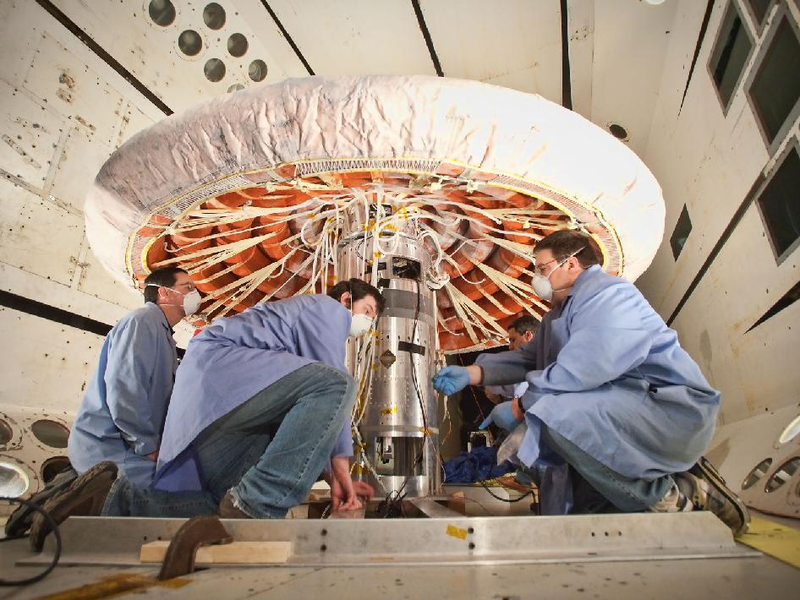

The IRVE hypersonic Inflatable Reentry Vehicle Experiment

IRVE-3 shown here.

Image for article titled Is There Anything Space Balloons Can't Do?
Advertisement

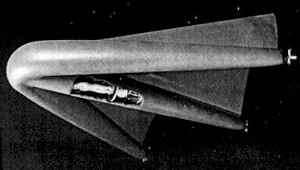

1960s inflatable Re-Entry Glider

This was designed to be an escape pod attached to the side of a space station, which would inflate to create a glider, on re-entry.

Advertisement
Image for article titled Is There Anything Space Balloons Can't Do?

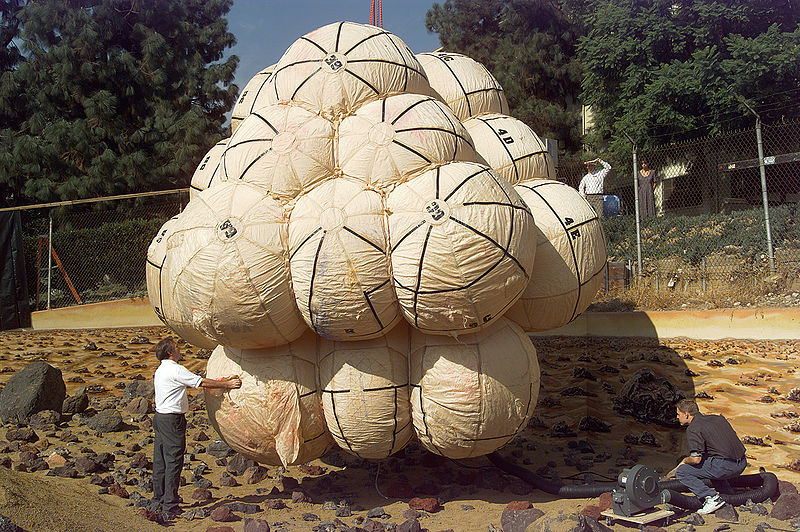

Protective air bags for the Mars Pathfinder Rover landing

Image for article titled Is There Anything Space Balloons Can't Do?
Advertisement

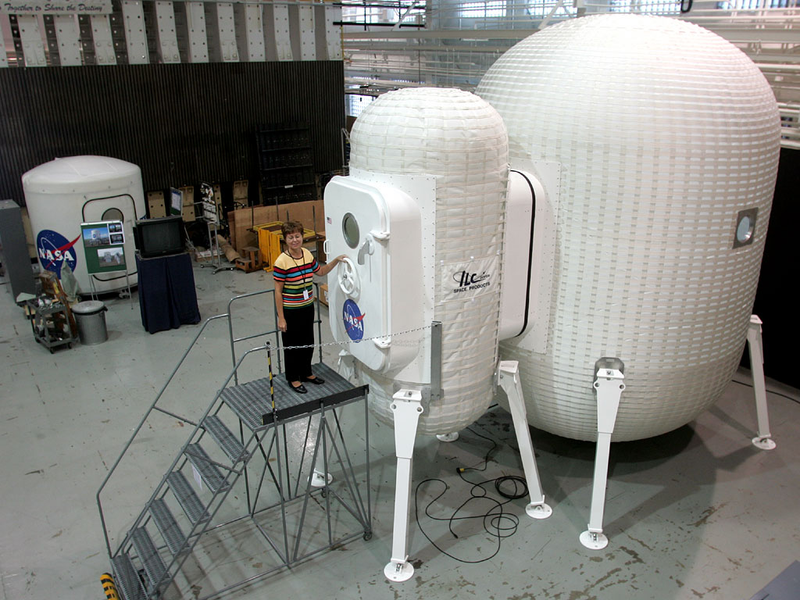

NASA Planetary Surface Habitat and Airlock Unit (Inflatable Moonbase)

Image for article titled Is There Anything Space Balloons Can't Do?
Advertisement

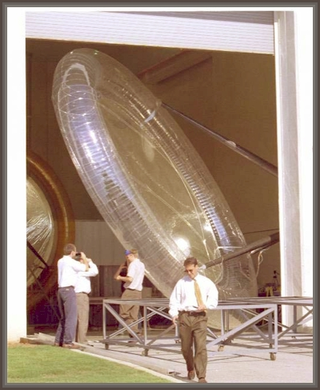

Solar Concentrator for lunar regolith (moon dust) processing

Image for article titled Is There Anything Space Balloons Can't Do?
Advertisement

1961 Nasa prototype of an inflatable solar collecting space station

Image for article titled Is There Anything Space Balloons Can't Do?
Advertisement

Von Braun Inflatable Nylon Space Station Concept

Von Braun's involvement in the US space race was highly controversial, having been the developer of the Nazi rocket program.
