Replica 4004 Calculator Features First Intel Microprocessor Used by Mankind

Illustration for article titled Replica 4004 Calculator Features First Intel Microprocessor Used by Mankind

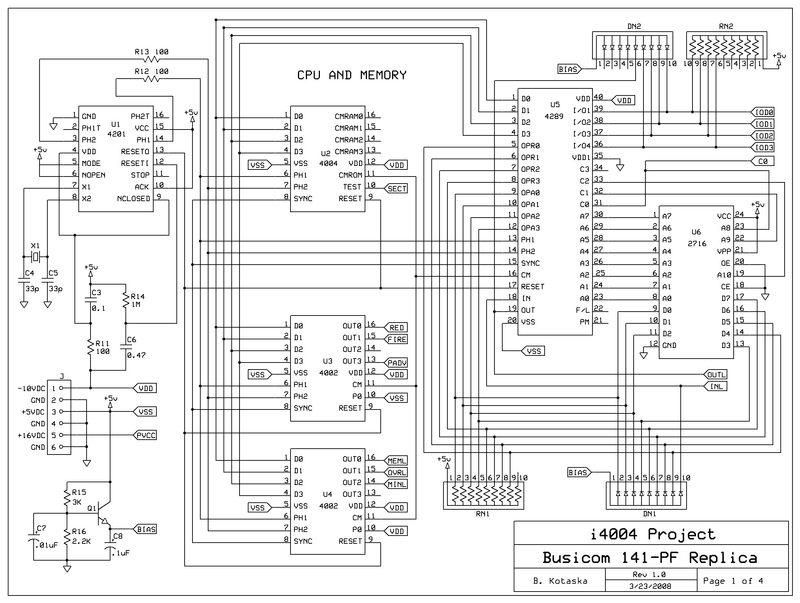

Long before we dissected new Apple MacBooks or worried about whether or not a PC had that "Intel Inside" sticker on the case, there was this little ditty called the Busicom 141-PF printing calculator. The iconic piece of tech (the first thing to actually have "Intel inside") turned 37 this week, and to commemorate the event, Bill Kotaska did what any retro-loving geek would do—he built a working replica with a vintage Intel 4004 microprocessor. It hails from a simpler time. A time when new laptops and PCs didn't come loaded with AOL adware and a buttload of annoying stickers on their facades.In addition to its obvious simplicity, the Kotaska replica boasts strange retro features like "paper" and a rare Shinshu Seiki Model-102 drum printer. The firmware is old school too, having been extracted from the original Busicom ROM. Be sure to read the narrative about this classic gadget of yesteryear in the link for more on its history. You might learn something. Curious about building your own? Have a nostalgic itch for the days when you couldn't hit the widget button on your laptop and have a calculator pop up instantaneously on screen? Kotaska has you covered, my friends, with the schematics for this rare recreation, as well as the original source code.

Advertisement
Illustration for article titled Replica 4004 Calculator Features First Intel Microprocessor Used by Mankind


There's a few more schematics where that came from, if that's your sort of thing. [4004 via Slashdot]
