Seven Easy Ways Scientists Get Rid of Gravity For Experimentation

Sometimes you just need to cut loose—from the Earth’s gravity. Want to feel what it’s like to be free from gravity, but can’t get yourself to the ISS? You’ve got some options.

Advertisement

There are tons of observations you can make of processes in zero or microgravity, especially in fields such as astrophysics, astrobiology, physics, chemistry, and others. It’s not always practical to sent people or equipment to space, but fortunately, there’s options here on Earth.

Micro-g circumstances can be created basically in seven ways:

  1. drop tubes,
  2. drop towers,
  3. parabolic flights,
  4. underwater training,
  5. sounding rockets,
  6. recoverable satellites,
  7. stratospheric balloons.

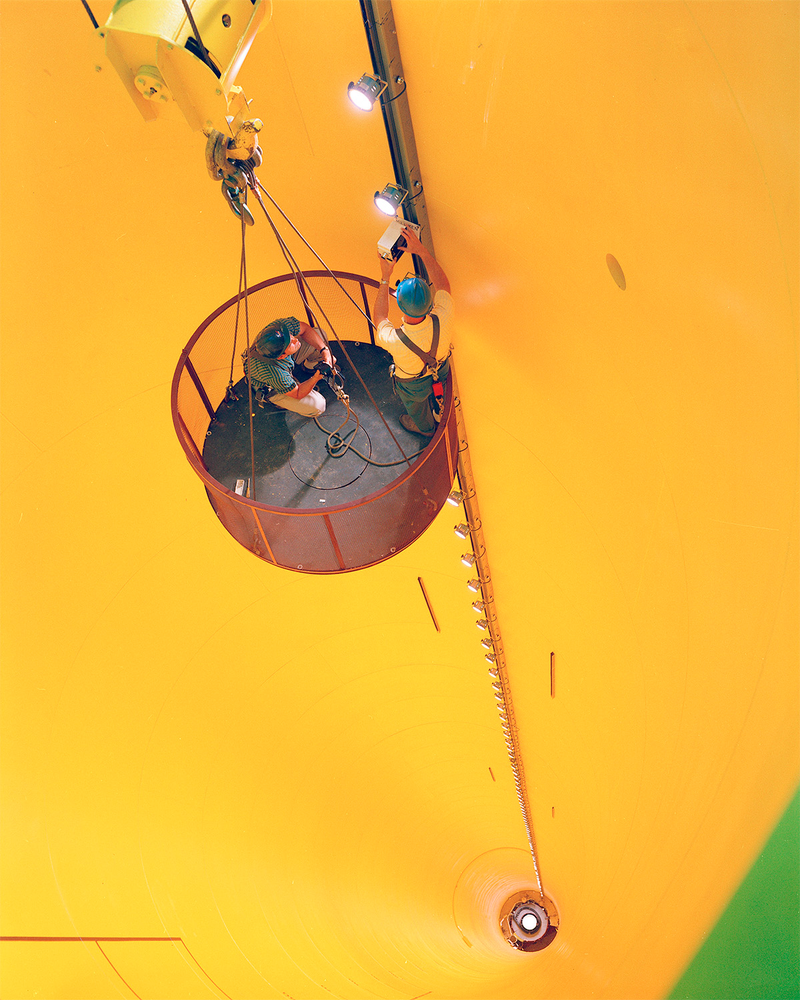

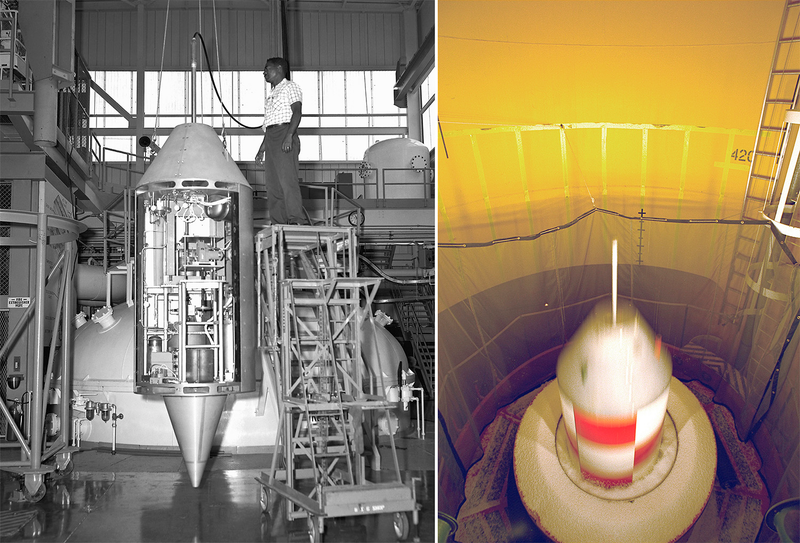

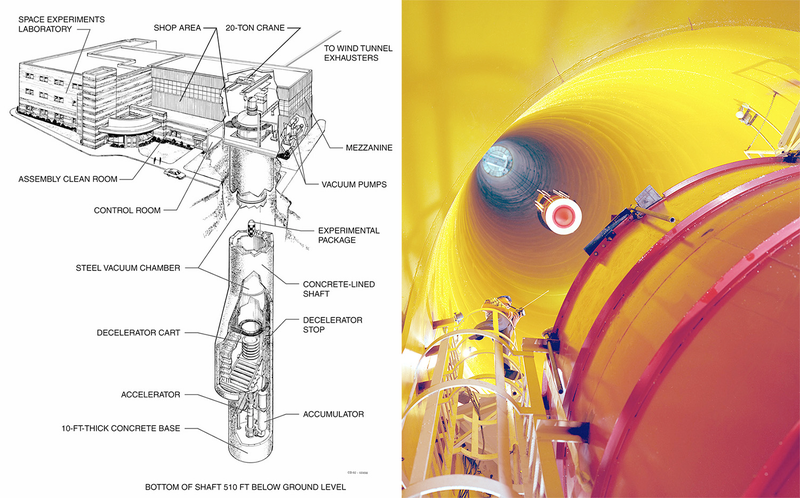

Microgravity drop tube (Zero Gravity Facility, John H. Glenn Research Laboratory, Lewis Field, Cleveland, Ohio)

NASA scientists can recreate weightlessness thanks to the 470 foot-deep underground vacuum chamber and the drop vehicle, which weighs about 2000 lbs. and makes a vertical nosedive for 5.18 seconds putting the experiments in a state of free fall.

Advertisement
Photo: NASA
Photo: NASA
Advertisement

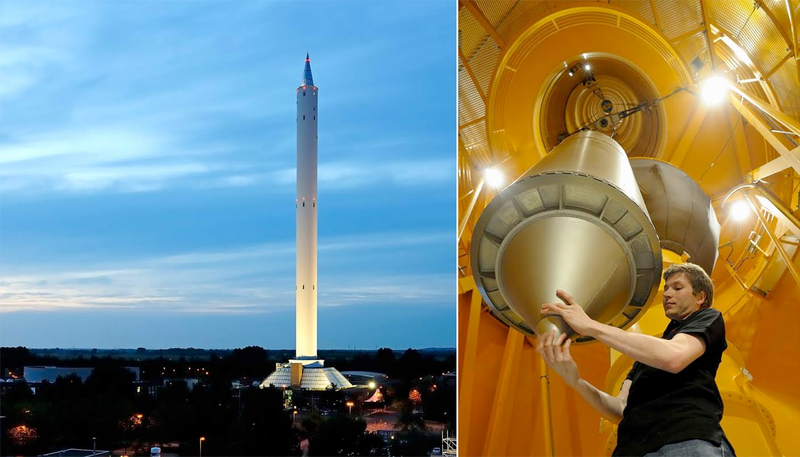

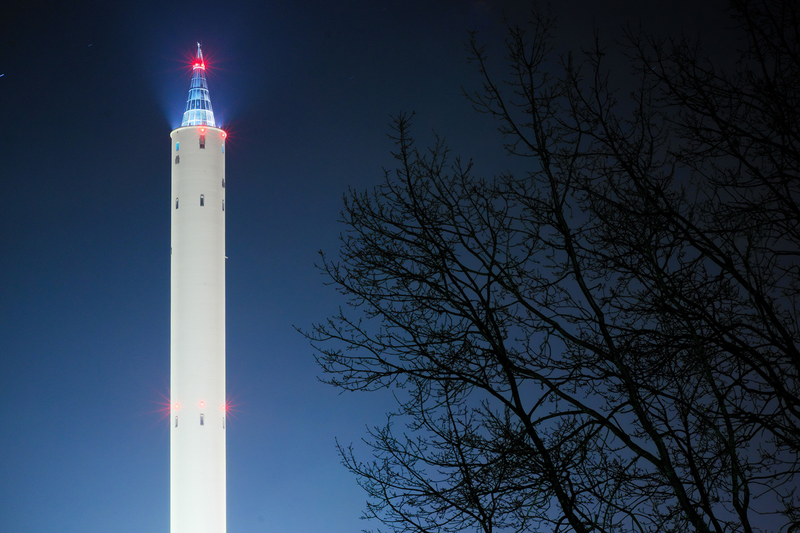

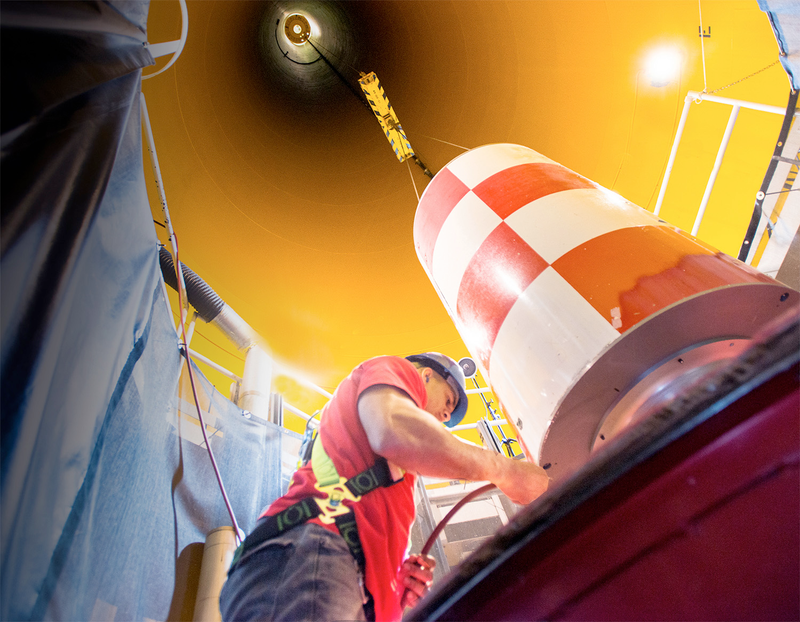

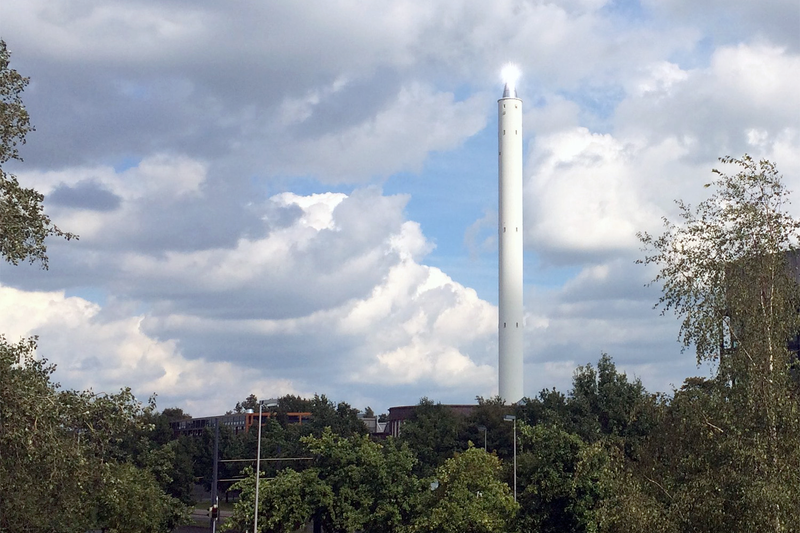

Fallturm Bremen

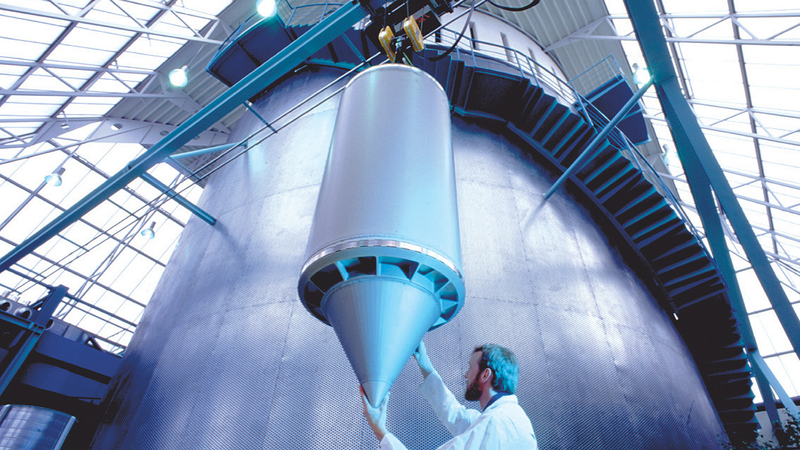

Fallturm Bremen is a drop tower at the University of Bremen’s Center of Applied Space Technology and Microgravity (ZARM). Its 404-foot-high shaft is long enough to put experiments into free fall for 4.74 seconds, or for over 9 seconds with the use of a catapult. The impressive tower, made of a reinforced concrete shank, is 479 feet high.

Advertisement
Photo: Dirk Duckhorn
Photo: Dirk Duckhorn
Photo: ZARM
Photo: ZARM
Advertisement
Photo: ZARM/Universität Bremen
Photo: ZARM/Universität Bremen
Advertisement

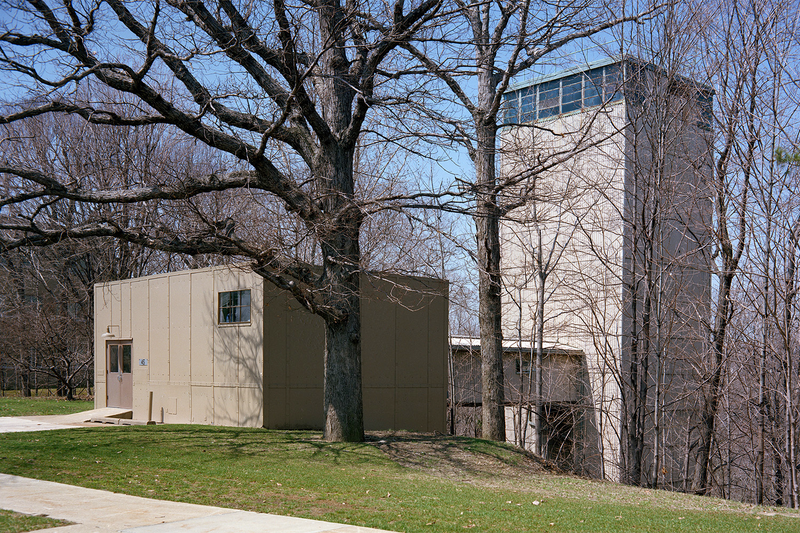

2.2 Second Drop Tower, Glenn Research Center

The NASA Glenn 2.2 Second Drop Tower in Brookpark, Ohio began life as a 100-foot high fuel distillation tower. After conversion, it has been used for nearly 50 years to study the effects of microgravity for 2.2 seconds, a test time created by allowing the experiment package to free fall from the eighth floor to the first floor, a distance of 79 feet.

Advertisement
Advertisement

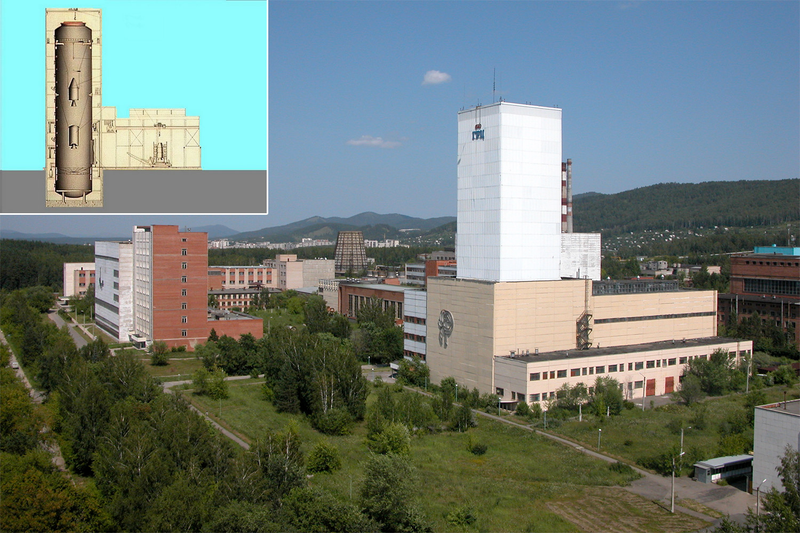

Vacuum-dynamic stand, Makeyev State Rocket Centre, Chelyabinsk, Russia

This is huge: the Russians’ drop tower can be used for testing full scale space hardware weighing up to 30 tons, dropping them from the top of the 98-foot-high vacuum chamber.

Advertisement
Diagram: Makayev SRC/GRT, photo: MIASS
Diagram: Makayev SRC/GRT, photo: MIASS
Advertisement

National Microgravity Laboratory (Beijing, China)

The giant tower of the Key Laboratory of Microgravity of Chinese Academy of Sciences is the center of microgravity research in China. Just like its Russian counterpart it allows full scale space hardware tests, required for China manned space program.

Advertisement
Photo: CAS//H-D. HU//Xinhua
Photo: CAS//H-D. HU//Xinhua

Zero-G aircraft (aka Weightless Wonders, Vomit Comets)

Micro-g environment can be created inside aircraft too, when a parabolic flight path relative to the center of the Earth is followed: the aircraft is in free fall at certain points of its flight path, so are the experiments or humans inside.

Advertisement
Photo: NASA/NASA
Photo: NASA/NASA
Photo: NASA
Photo: NASA
Advertisement
Photo: NASA
Photo: NASA
Photo: NASA
Photo: NASA

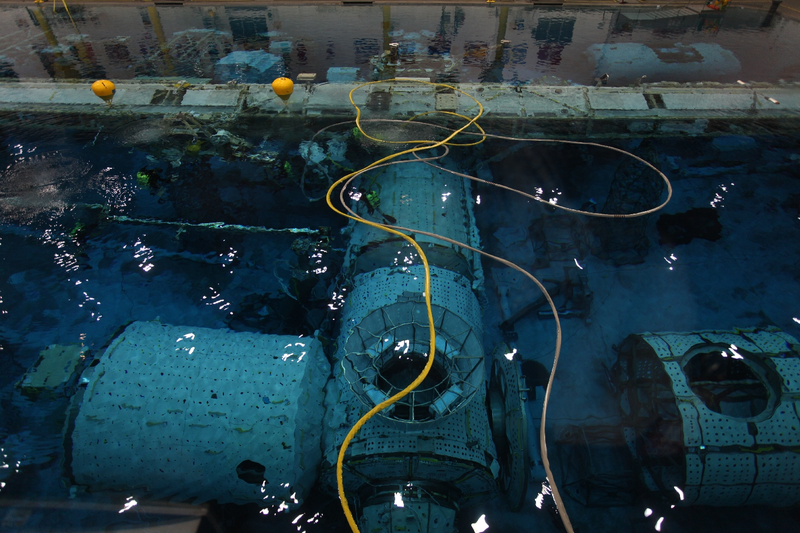

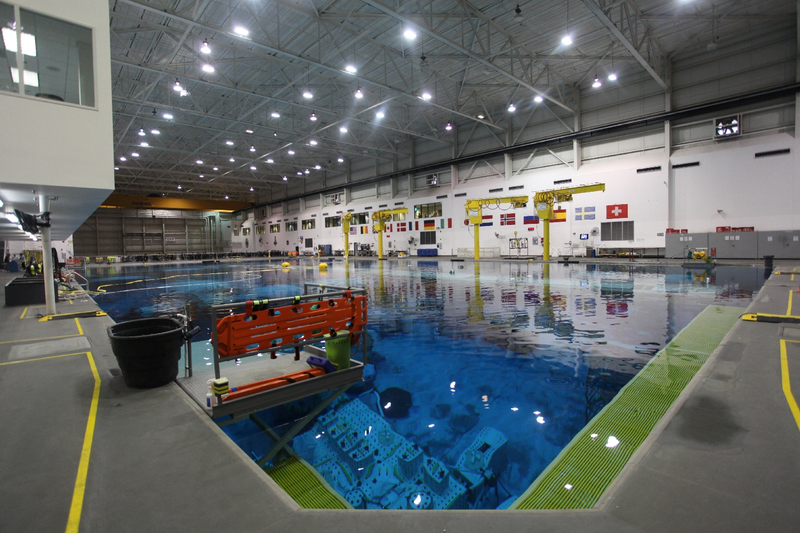

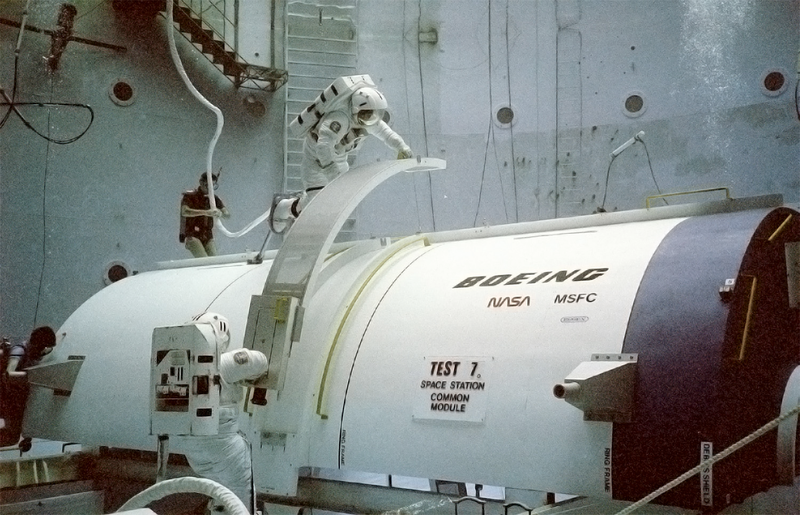

Microgravity in neutral buoyancy pools

Huge indoor tanks and pools, such as the Neutral Buoyancy Laboratory in Houston, or its predecessor, the Neutral Buoyancy Simulator at Marshall Space Center (MSFC), can also help to simulate the weightlessness environment that astronauts experience during space missions. Thanks to the upward buoyant force exerted by water, it is possible to test hardware designed to operate in space, also practice techniques used in space to assemble structures.

Advertisement
Photo: NASA
Photo: NASA
Photo: NASA
Photo: NASA
Advertisement
Photo: Attila Nagy/Gizmodo
Photo: Attila Nagy/Gizmodo
Photo: Attila Nagy/Gizmodo
Photo: Attila Nagy/Gizmodo
Advertisement

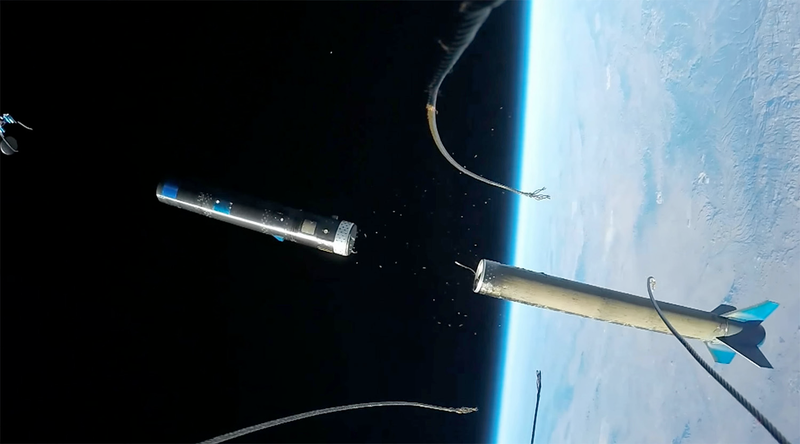

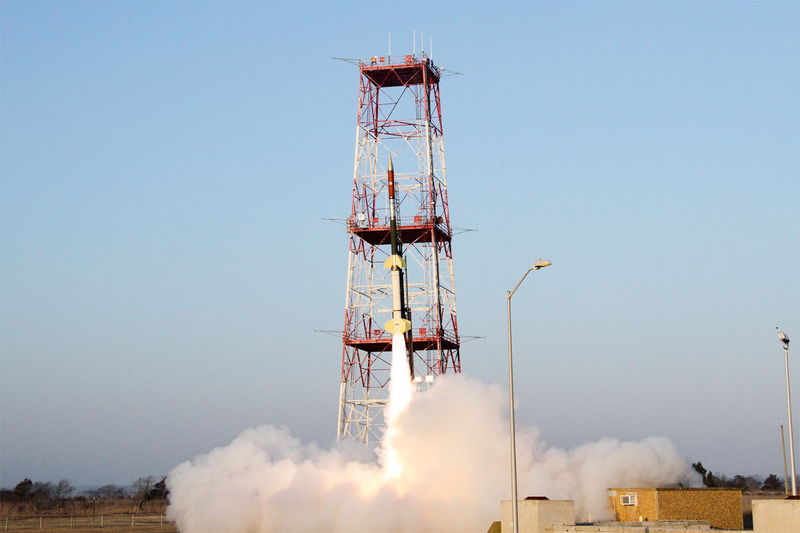

Sounding rockets

These slim, low-cost, solid fuel propelled research rockets are designed to take experiments to the edge of space (from 31 up to 932 miles high) for a relatively short time during a maximum 30-minute-long sub-orbital flight. Beside recoverable satellites this method is the best alternative if you don’t have a first class ticket to a space station.

Advertisement
Advertisement

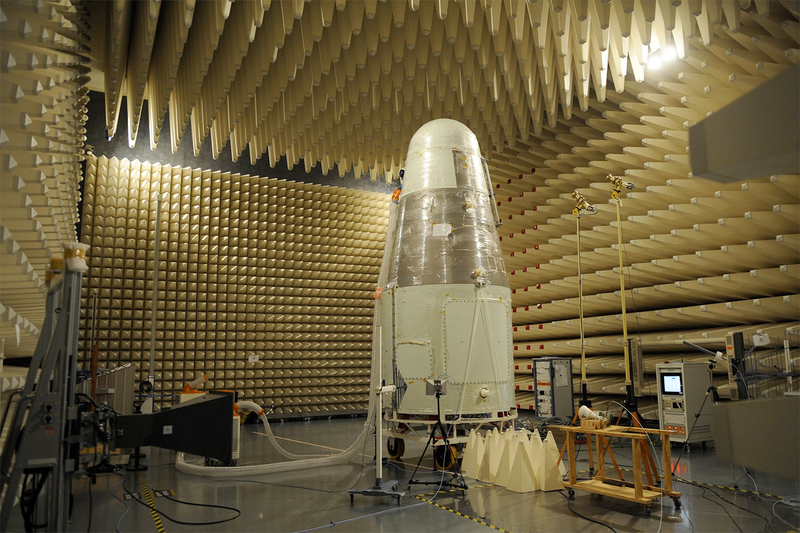

Recoverable satellites

Satellites usually aren’t designed to come back to Earth in one piece, except retrievable scientific research satellites, like China’s bullet-shaped probe below, housing several experiments involving microgravity fluid physics, microgravity combustion, space material, space radiation effect, microgravity biological effect and space bio-technology. Thanks to its massive structure, shape and the ablative coating it can survive the controlled reentry after spending the planned time on orbit.

Advertisement
Photo: Xinhua/Chinese Academy of Sciences
Photo: Xinhua/Chinese Academy of Sciences

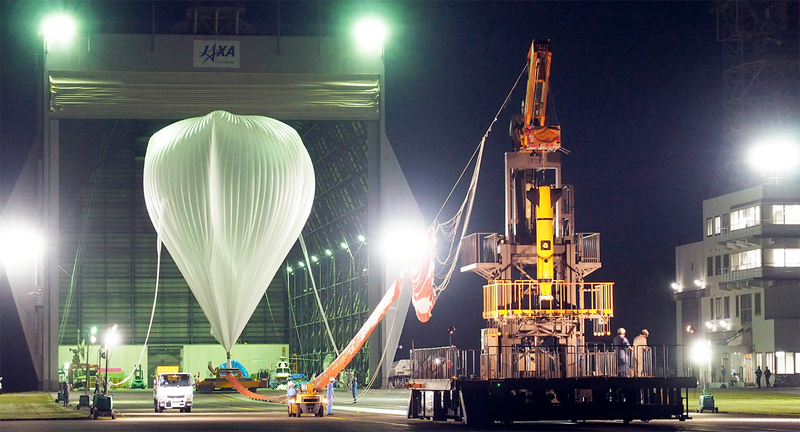

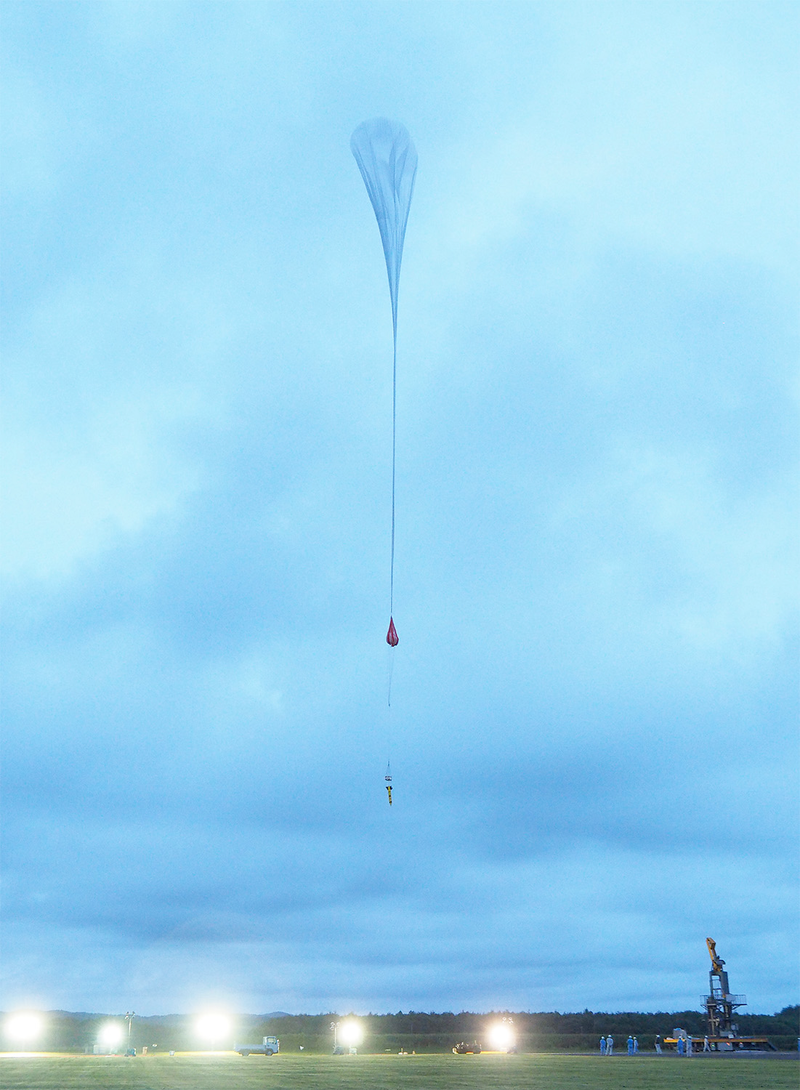

Stratospheric balloons

Dropping test objects from a height is a trustworthy way to put experiments into free fall. If drop towers and tubes are not enough, an alternative method is to use stratospheric balloons from which researchers can drop a container carrying the experiments. Below is a balloon-borne platform, which was developed by JAXA, the Japanese aerospace agency, in order to obtain microgravity, using a rocket-like device dropped from 40 kilometers in the air.

Advertisement
Photo: JAXA
Photo: JAXA
Photo: JAXA
Photo: JAXA
Advertisement
