Last week we showed you how NASA simulates space here on Earth, with everything from advanced virtual reality to monstrous thermal vacuum chambers. But all of that still can’t prepare you for how an object, or an experiment, will behave in zero gravity. Sometimes you just have to fly.
Luckily, NASA doesn’t have to spend millions of dollars sending prototypes into space just to see if they’ll work. Much of that can be done a lot closer to the Earth’s surface. The Reduced Gravity Office at the Johnson Space Center in Houston is home to NASA’s own flying, microgravity laboratory, “The Weightless Wonder.” It’s every bit as incredible as the name suggests.
Gizmodo’s Space Camp is all about the under-explored side of NASA, from robotics to medicine to deep-space telescopes to art. We’re coming at you direct from NASA’s Johnson Space Center in Houston, Texas, shedding a light on this amazing world. You can follow the whole series here.
Earlier this spring, Gizmodo got a call from Zach Barbeau, an engineering undergrad at Oklahoma State University. His team had been selected—with a handful of others from different colleges and universities—to fly their proposed experiments onboard NASA’s famous zero gravity plane. They were allowed to invite one reporter. Did I want to go?
Did I ever.
NASA’s high-flying Reduced Gravity program

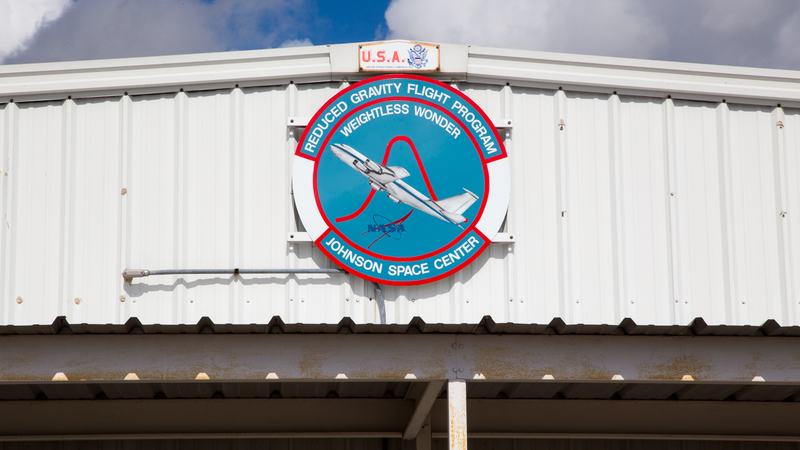

NASA’s Reduced Gravity Office has been an institution at the Johnson Space Center since 1959. It was used to support the Mercury missions, then Gemini, then Apollo, all the way through Skylab, the Shuttle program, and today’s International Space Station initiatives.
During that time, the custom planes have made more than 100,000 microgravity dives to support the training and testing associated with these missions. A microgravity dive is a parabolic arc wherein the plane dives at the same speed at which you fall—so within the plane’s enclosed cabin, it looks and feels like you’re just floating. NASA calls their plane the Weightless Wonder.

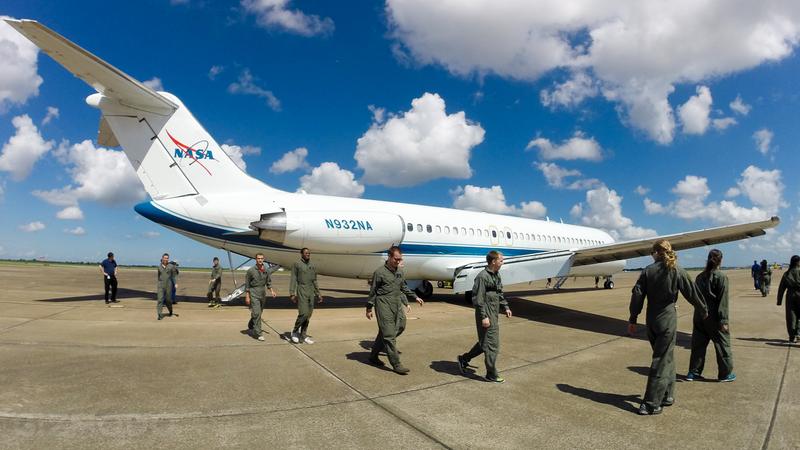

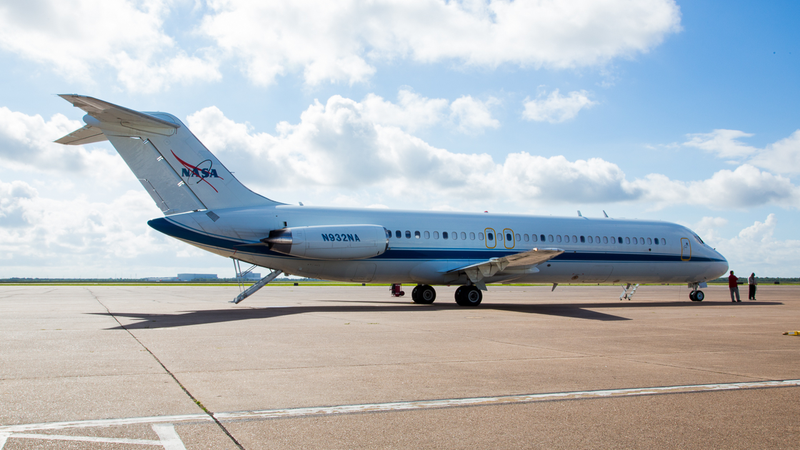

For all intents and purposes, the planes NASA uses are off the shelf. For the last while they’ve been using a KC-135A turbojet, but I got especially lucky while I was there. The turbojet was having some problems, so instead they resurrected an older C-9, one of the original Weightless Wonders. The interior is slightly smaller than the KC, but boy does it provide a smooth ride.
The exteriors of these planes don’t need to modified in any meaningful way. The stresses imparted onto the airframe during the dives and rapid climbs are all well within their designed tolerances. The real special sauce is on the inside. There are only about 20 seats, all of which are at the rear of the plane.
From there to the cockpit, it’s all laboratory. Every surface of the lab—the floor, walls, and ceiling—are padded with what seem to be white gym mats. This greatly improves safety, because you are absolutely going to hit your head (and everything else) until you figure out what you’re doing. Under the mats are intricate systems that allow you to bolt various items (palates full of lab experiments, for example) to the floor, so they won’t float away.
The windows are all shuttered during flight, because the illusion of placidly floating is most definitely ruined if you can see that in actuality, you’re falling out of the sky, and quickly. In lieu of windows, the cabin is outfitted with photographic lighting throughout, which provides a nice, even light.

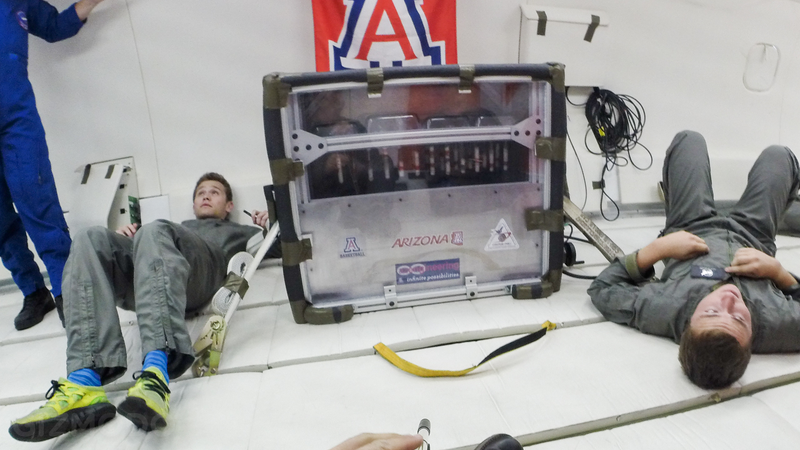

I was brought in for the Reduced Gravity Education Flight Program’s annual flight week. The RGEFP has been a part of the Reduced Gravity Office since 1995, and since then every year it’s given students (and teachers) a chance to propose, design, build, test, and fly a microgravity experiment on a plane run by the Reduced Gravity Office. This is how it earned the moniker Microgravity University. This year NASA’s guidelines were that the experiments should focus on improving human spaceflight, and I was coming along to see it in action.
What it feels like
Let me start with a confession. Experiencing zero gravity is literally my oldest dream. In first grade my best friend and I spent countless hours trying to make an “anti-gravity potion” out of various household products. We accidentally poisoned the tree in my front yard trying to make it levitate (sorry mom). We were going to grow up to be scientists and we were going to figure out how to make humans fly, weightless, at will.
So to say that I was excited about the possibility of experiencing zero gravity would be a gargantuan understatement. In fact, I refused to let myself believe that it was really happening until the plane actually took off. But let’s back up. When it’s finally your day to fly, it goes like this.
Starting at 0745 (that’s military time, folks), teams have their mandatory flight day meetings and educations briefings with the flight crew. This is where final logistics are discussed and any last-minute problems are ironed out, if they can’t be. If not, the experiment doesn’t fly.

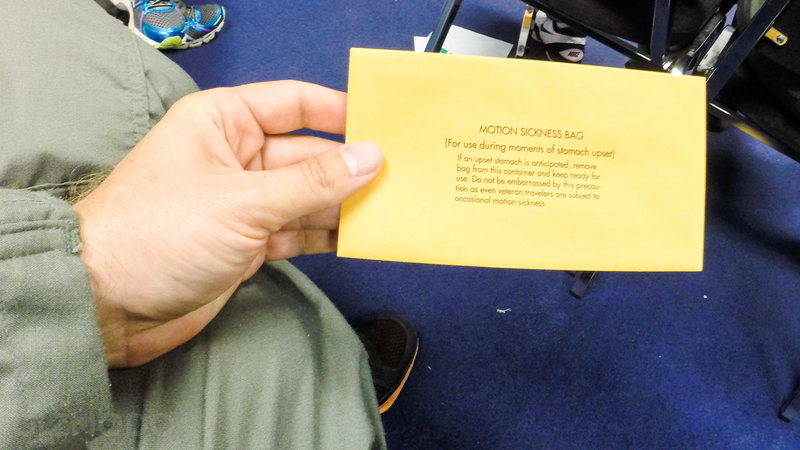

Then you get into your big, baggy flight suits, which have plenty of large pockets, mostly used for holding barf bags, so you can access them instantly, with either hand. Everyone is required to carry at least two. Some carry more. Only one person needed theirs on the day I flew, and the bags contained everything very neatly, thankfully.
At 0815 you have a half-hour medical briefing where you are told about the physiological effects of the parabolic flights. You are offered some airsickness medication. If you take it, your chances of getting sick during the flight are about 1 in 10. We were told that if you didn’t want to take it, your chances of getting sick were more like 1 in 3.
Everybody took it.
One of the most surprising things we learned is that it isn’t typically the zero-g dives that make people sick, it’s the 1.8g assents. You feel your guts being pulled down into the floor, and more importantly, it has a strong effect on the fluids in your ears which affect your sense of balance, and that’s what makes you nauseous.
We were told to not turn our heads quickly during ascent. Ideally, we shouldn’t move at all. If we must turn it was recommended that we turn with our whole bodies, rather than just our heads. It was suggested that we lie flat on our backs. “One in ten… one in ten…” I kept thinking to myself. “Is it going to be me?”
We sat in standard airplane seats, we took off, and headed out over the Gulf of Mexico. When we’d reached our cruising altitude of 26,000 feet, we were given the all-clear to get up. The students headed to their projects (more on those in another post), bolted down to the floor, and made sure everything was ready. Many lay down on their backs. And then the pilot hit the throttle and we started to climb.
Oh what a feeling…
1.8gs are plenty intense. I opted to lean back against one of the padded walls of the C-9, but I could see why so many chose to lie down. I could feel the blood in my head being pulled down toward my feet. I lifted up my arm and it felt like a weight was tied to it.
And then the plane came over the top. The engine quieted. The extra weight was lifted off of my body... and then all of the weight was gone. I was still on the floor, but I was no longer pressing into it. I gave myself the tiniest little push, and before I knew it, I was flying.
I was filled with such a complete sense of wonder and joy that I almost burst into tears. I had never in my life felt anything like this. It was a moment I had been dreaming about for more than 30 years—for as long as I can remember—and it was even better than I had imagined.
It’s also much harder to control than I imagined, despite having watched countless hours of footage of astronauts on the ISS. On Earth, if you sense you’re off balance, you grab onto something, right? Well, I felt myself drifting off, so I grabbed onto a ceiling strap.Before I knew what was happening, I was flat on the ceiling, and NASA’s crew was trying to pull me back down. Oops?
Twenty-five seconds later, and we were all back on the floor, beaming. All of the first time fliers were gut-laughing with ear-to-ear grins. There was a guy, roughly my age, from NASA JPL who just happened to be in town and was flying for the first time. He’s the guy in the blue suit in the top video who looks like he’s having the time of his life. That was how all of us felt. We couldn’t believe that has just happened.
What’s crazy is that there’s no in-between time between 0g and 1.8g. You know how when you’re riding your bike downhill, and you see you’ve got an uphill coming up, you try to use all that speed you’ve generated going downhill to help you start your next climb?
That’s exactly how these parabolic dives work. They use the momentum they generate on the dive to take them right into the next ascent. It’s much more energy efficient, but it also means that because you don’t spend any time 1g, you never really get to reset, and it can start to feel overwhelming.
I happened to be in the lucky majority and I didn’t get sick. This led me to be increasingly reckless as we went, and I would use our time spent at 1.8gs to crawl around and reposition myself to better see the different experiments. I even tried standing a couple times and man, you really feel it then. Instant quad-burn.

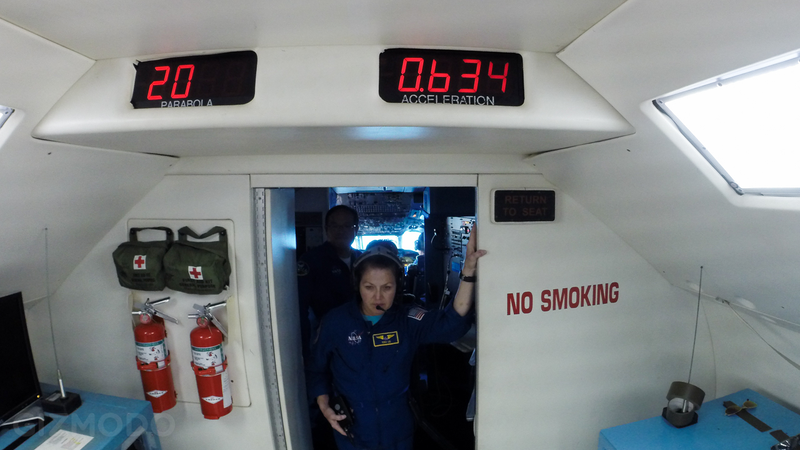

I had the opportunity to go inside the cockpit mid-flight. I stood behind the pilot, clutching the back of his seat as we climbed. It was the first time I could see out of the plane and it was much stranger to have contextual awareness. It wasn’t just that I was heavy, I was heavy and climbing, staring straight up at the blue sky.
How zero-gravity parabolas work
The science behind the zero gravity dive is actually very simple. There is no magical way to create anti-gravity or to build a zero gravity room that is somehow immune to gravity’s forces. So if you can’t beat ‘em, join ‘em.
Parabolic dives are, in fact, a state of free-fall. You’re basically sky diving; the only major difference is that you are in a fully enclosed space, so you can’t hear or feel the wind rushing past you, and you can’t see the rapidly approaching ground. You get that feeling in your stomach, like when you’re on a roller coaster and you take that first big drop, but then your other senses tell you that no, you’re not falling, you’re just floating there.
But I promise you, you’re falling. In fact, you’re falling 8,000 to 9,000 feet per dive.
If you were watching a dive from the outside, this is what you’d see. The plane flies out over the Gulf of Mexico and reaches a cruising altitude of 26,000 feet. Then it starts to climb at full speed, roughly at a 45 to 52 degree nose-high angle.
Inside the plane everything gets heavy. This is because the plane is pulling roughly 1.8gs, or 180% percent of the Earth’s normal gravity. That means that if you weigh 175 pounds (which I do), suddenly it feels like you weigh 315. It is a major difference. But then the plane goes over the top of its arc—as if it were summiting a hill and dropping straight down the other side—and suddenly it’s diving nose-low and 45 degrees and you’re weightless.
Basically, the dexterity of the pilots (and NASA’s are the best in the business) keeps the plane diving at the exact speed at which you are falling. So, relative to you, it looks like everything is standing still, and you’re just floating there. It’s an intricate optical illusion.
The dive itself only lasts about 25 seconds, then the plane climbs again for a minute or so before heading back into its next dive. Repeat 30 times per flight, give or take. If you were to view it from far away it would like the plane were a rock skipping along an invisible lake.
When we nosed-over, I went totally weightless, while staring from the cockpit directly down at the ocean we were plummeting toward. It was thrilling. I wasn’t strapped in, either, so as we were falling, I was doing my best to grab onto unimportant objects to steady myself and keep from crashing into the console in front of the pilots.
After 15 parabolas heading outward, the plane turns around, and you do 15 more heading back. It took the students one or two parabolas at the outset to get used to the feeling and enjoy themselves, and then they got down to work. The were incredibly focused given the extraordinary circumstances. But more on that in tomorrow’s post.
After the standard 30 0g parabolic dives, we were given a little bonus. First we got to experience a lunar-gravity dive, which is one-sixth that of the Earth’s. I did a pushup, and ended up on my feet. I gave a little jump and I gently floated up and then sank back down. It made me think of all those videos I’d seen of astronauts skipping along the surface of the Moon, except I wasn’t weighed down by a heavy spacesuit and life-support system.
Finally, we got to do a Martian-gravity dive, which is one-third that of Earth’s. It was such an interesting hybrid feeling. I could walk around, but everything felt so easy. I did some one-handed clap-pushups like they were nothing. If we ever do end up colonizing Mars, basketball games are going to be amazing.
All told, we were out and back in under two hours. It was something I’d waited for my whole life, and then it happened and was over so fast.
I’m not good with ranking things, but it’s safe to say that my microgravity experience is solidly in my top-five all-time life experiences. Honestly, it’s very possible that it’s number one, bar none. I still get a thrill every time I think about it.
An Uncertain Future
Sadly, the future of the Reduced Gravity program is bleak. NASA is, after all, a government organization, and politics and budget cuts can sometimes trump science.
NASA’s is currently under significant pressure to use outside contractors as much as possible. Sometimes that makes really good sense; if it can buy a piece of hardware off the shelf rather than spend the money on R&D while they build it themselves, that’s a huge cost savings, and that’s good for everybody. This same thinking was applied to reduced gravity operations; there are commercial vendors out there (like Zero G Corp) that would be cheaper to use than NASA maintaining its own system. Or so it seemed.
And so in September of this year, the Reduced Gravity Office was shut down, and the Weightless Wonder was decommissioned. After 55 years of NASA-run reduced gravity operations, it was over.
And then it wasn’t.
What happened? A sea of red tape. Stay with me here. NASA quickly realized that while the plan to use a commercial contractor for reduced gravity operations looked good on paper, there aren’t any viable options out there. Yes, the aforementioned Zero G Corp has the planes, but NASA’s requirements go far, far beyond having a plane that can simply do parabolic arcs.
First, there’s the certification problem. Every time you bolt something to an airplane’s frame, it must be re-certified by the FAA. You install a new experiment, you add or remove a single chair, and it counts as a new configuration. For a private company, that means having to pay to bring in an FAA engineer to inspect their fleet and to have them sign off on it every time. Not only would that be slower, but it would be more expensive.
In contrast, NASA is a federal organization and has engineers on staff who have the power to check, approve, and certify every new configuration. It’s faster, it’s in house, and since these men and women are already on NASA’s payroll, it’s cheaper.
Equally important, NASA has an expansive list of experts on staff that it can call on for consultation. For example, one recent experiment involved studying the effects of microgravity on cerebrospinal fluid. That meant drilling a port into an actual, living human’s skull and inserting a heart catheter into him. NASA had medical experts on hand to assist. Another experiment involved arc welding in microgravity. Good luck getting the FAA to sign off on the use of an arc welding torch, in flight, on a commercial jet.
And because the RGO has been doing this for so long, it’s made a lot of mistakes and learned from them. “Some gasses mix differently in 1g verses 0g versus 2g,” Del Rosso told us. “One of them may be extreme dangerous.” That wouldn’t be obvious to your average flight personnel. Again, the RGO isn’t running a plane, it’s running a laboratory that just happens to fly. You want experienced lab technicians, don’t you?
Add in the fact that NASA pilots are often former fighter pilots and are typically the very best in the world, and the fact that as long as we are going to be exploring space we are going to need reduced gravity flying, and you have a lot of compelling reasons for keeping the RGO up and running.
And that’s exactly what NASA found soon after the program was shut down. None of the current contractors out there could offer the same things that RGO does. And so, a few weeks ago Dom Del Rosso got a call from the higher ups. It was time to get the band back together.
Del Rosso, who was reassigned, is currently scrambling to reunite his team, get new people trained, get other people out of the new gigs they were reassigned to, and get the C-9 plane flight-ready by January, which is when they intend to resume operations.
The program has been guaranteed funding through at least 2015. NASA is making one last effort to find outside contractors who might be capable of taking over reduce gravity operations starting in 2016. If that happens, microgravity flights would be run out of NASA’s Dryden base in California, and the Reduced Gravity Office would be closed for good.
The results of that final survey should come through in the next few weeks, but at this point, for all the reasons we mentioned above, it seems unlikely that they’ll find viable contractor. If that’s the case then the reduced gravity program will likely be extended for at least another few years, whereupon NASA will reassess again.
In the meantime, we’ll be dreaming of another chance to fly.
