This Amazing Carbon Fiber Pavilion Was Woven by a Robot

Images: V&A Museum
Images: V&A Museum

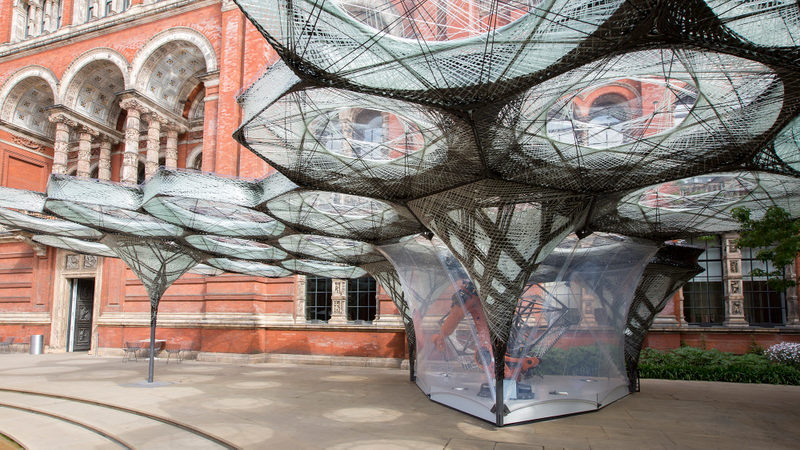

London’s Victoria & Albert Museum has unveiled an incredibly intricate robotically woven and biologically inspired carbon-fiber pavilion in its courtyard.

Advertisement
Illustration for article titled This Amazing Carbon Fiber Pavilion Was Woven by a Robot

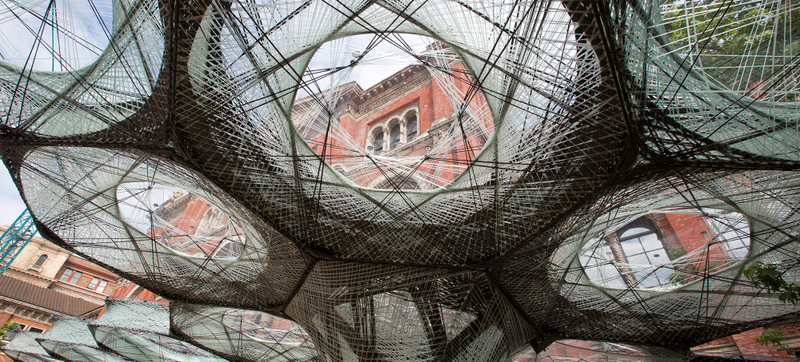

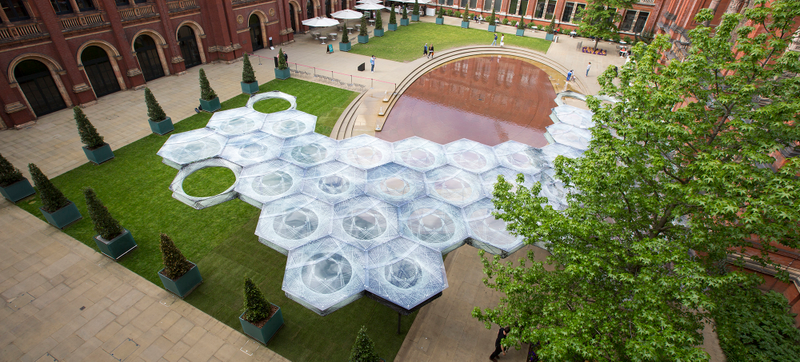

The structure, constructed as part of the museum’s new engineering season, is built up of 40 hexagonal components that cover over 2,000 square feet. Each panel is made from a combination of transparent glass fiber and black carbon fiber, woven into a structure inspired by a beetle’s forewing—known as elytra, hence the structure’s name, Elytra Filament Pavilion.

Advertisement
Illustration for article titled This Amazing Carbon Fiber Pavilion Was Woven by a Robot

The panels weigh around 100 pounds each. In total, that means that the entire structure weighs just 2.5 tonnes. The installation is the brainchild of experimental architect Achim Menges, along with collaborators Moritz Dörstelmann, Jan Knippers and Thomas Auer.

Illustration for article titled This Amazing Carbon Fiber Pavilion Was Woven by a Robot

Each panel takes around three hours to be constructed by a computer-programmed Kuka robot. One of those robots will sit within the courtyard during the course of the exhibition. While in situ, it will create new elements that can be added to the structure based on real-time sensed data.

Advertisement
Illustration for article titled This Amazing Carbon Fiber Pavilion Was Woven by a Robot

The Museum’s engineering season is open now and will run until November 6th.
