In recent decades, material scientists have made ever-stronger metals—but the techniques used to weld them often ruin their properties. Now, a team has developed a way to weld together these previously un-weldable materials.

Many metals have been tweaked by material scientists at the microscopic level to be much, much stronger. But their intricate new microstrcutures are ruined, in part at least, by the high temperatures used to weld them, decreasing their strength around the weld.

Advertisement

Now, a team from Ohio State University has developed a new welding technique called vaporized foil actuator (VFA) welding. It’s fairly straightforward: a short electrical pulse is passed through a piece of thin aluminum foil. The foil vaporizes within microseconds, creating a burst of hot gas which pushes two pieces of metal together at speeds of up to thousands of miles per hour.

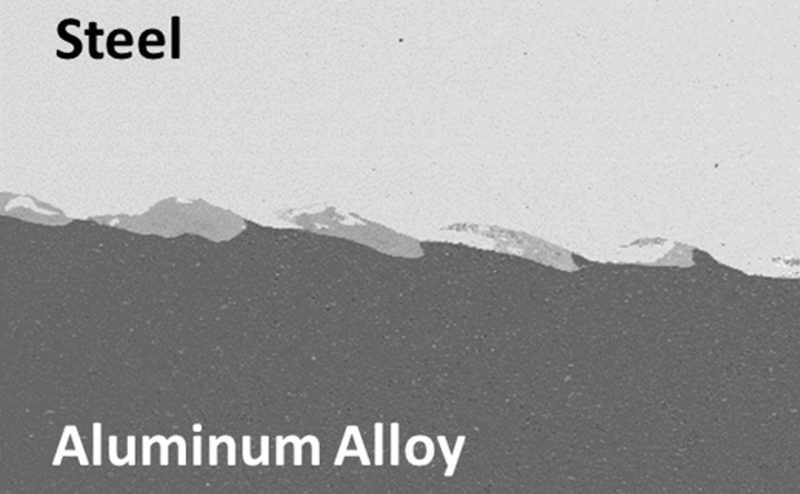

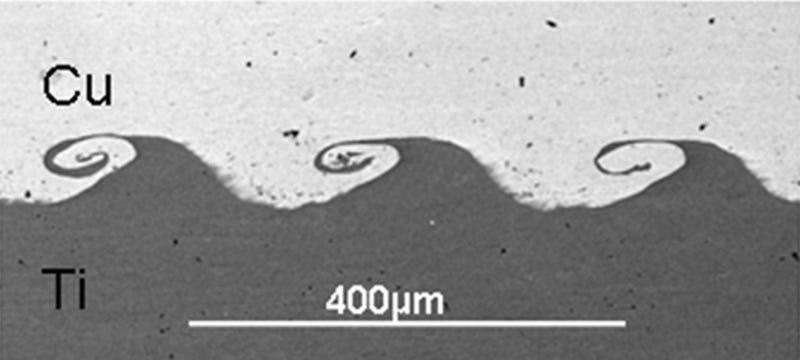

The metals never melt; instead, the impact is strong enough for the atoms of one metal to bond with the atoms of the other. The result, viewed under a microscope, is wave-like pattern created as the micostrcutures of the metals wrap around each other. The technique was recently presented at the Materials Science & Technology 2015 meeting.

Advertisement

The technique actually uses less energy than most welding techniques, but more importantly it preserves the properties of the high-strength metals around the weld, increasing the strength of a join by up to 50 percent. So far, the team have used it to join different combinations of copper, aluminum, magnesium, iron, nickel and titanium.

The method will prove attractive to engineers keen to use the latest high-strength materials — which will in turn allow them to turn shave weight from the airplane, car, or whatever else it is they’re building .

[Ohio State University]
