Vincent van Gogh’s “Starry Night” seems to have a special appeal for scientists, who have recreated it using bacteria, among other media, in the past. Now scientists at Caltech have made their own tiny version of the painting—a dime’s width across—out of folded DNA molecules. Some day the same technique could be used to build teensy biosensors, or for targeted drug delivery.
It’s called “DNA origami,” and while many different kinds of shapes have been created using it, this is the first proof of concept that it’s possible to scale up and build large numbers of DNA based devices on computer chips. The Caltech team described their work in a new paper in Nature.
“Everybody thinks molecules are eventually going to be the devices of the future,” Caltech’s Paul Rothemund, DNA origami pioneer and co-author, told Gizmodo. “But how do you connect them? How do you wire them up into larger circuits? How do you do anything with them? You need an interface between the molecular and the macroscopic world, and that’s what this is.”

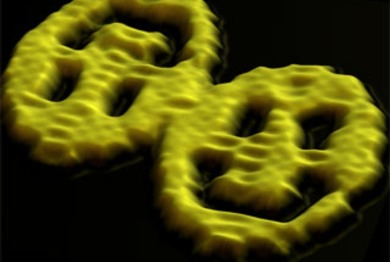

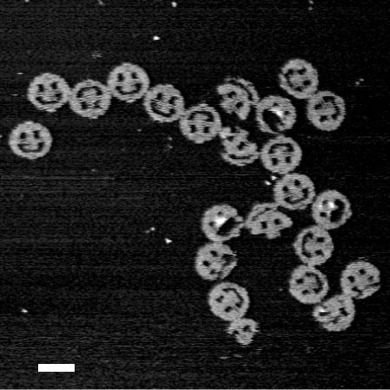

It’s been ten years since Rothemund made the first amusing shapes by folding strands of DNA. His nanoscale smiley faces, stars, snowflakes, and a miniature map of the Western hemisphere were even displayed at the Museum of Modern Art in New York City in 2008—a true marriage of science and art.
DNA takes the form of a double helix, and encodes all the genetic instructions for manufacturing proteins. It has four repeating chemical bases—known as A, T, G, and C—that are complementary, so A always pairs with T, and G always pairs with C.
To create his special shapes, Rothemund folded a single long strand of DNA back and forth into whatever shape or pattern he desired (determined beforehand with computer modeling), then stuck it all together at strategic points with “staples” comprised of shorter DNA strands. Each V-shaped staple had two “arms” with a base sequence that would bind to its complementary sequence on the longer DNA strand. Then he heated the long DNA strand in a saline solution, and let the whole thing self-assemble into the desired pattern.
It only takes about one week to design the pattern on the computer, and another week to synthesize the DNA, and the actual self-assembly only takes a few hours. “But then you’re stuck with a device that’s floating around in a solution,” said Rothemund. “You can’t combine it with anything else, you can’t wire it into a circuit, it’s even hard to measure its performance.”
If this were ever to find any practical application, Rothemund knew he needed to figure out how to integrate his DNA origami with silicon microfabrication, and he collaborated with IBM scientists to do just that. By 2009, they had discovered that you could make sticky patches on a chip that were the same size and shape as the DNA origami. Simply pour the solution containing the DNA over the surface of the chip and the DNA molecules will stick to those matching patches.
That DNA shape now acts as scaffolding, making it possible to attach other tiny components—like fluorescent molecules. Rothemund likens it to the pegboards typically found in garages to hold various tools, except this is a self-assembled pegboard where the tools find their own positions and stick there, held in place by DNA functioning like Velcro.
Rothemund and his colleagues have been refining this technique ever since. Over the last six years, he and a Caltech postdoc, Ashwin Gopinath, have shown that they can position their DNA origami on pretty much any surface used to make computer chips.
And their latest paper offers the first application: using the method to stick fluorescent molecules into tiny light sources, much like light bulbs screw into lamps. The “lamps” in these experiments are photonic crystal cavities tuned to a specific wavelength of light—in this case, a deep shade of red. (Manmade photonic crystals are engineered with a highly precise honeycomb structure that causes light to reflect off the surface in such a way as to block certain frequencies of light and let others through.)
The injected fluorescent molecules will glow at the tuned wavelength, thereby “lighting” the lamps. But location is key: the molecules will glow more brightly at some locations within the cavity than at other locations. By fiddling with positioning, Rothemund and Gopinath found they could create checkerboard patterns of “hot” and “cold” spots.

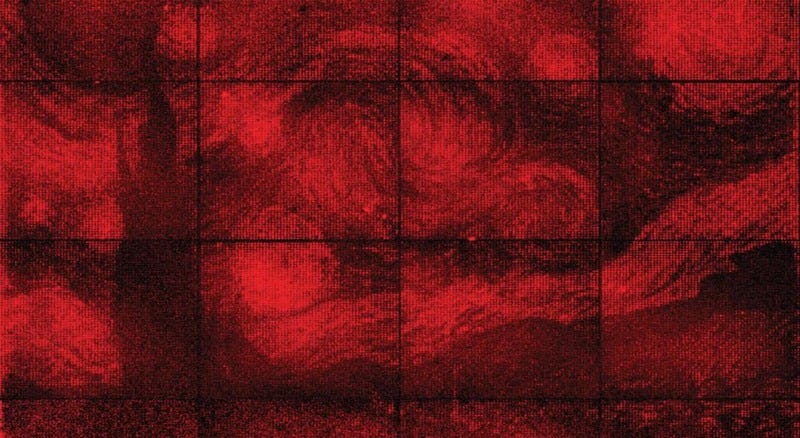

That gave them the capability to reproduce other, more elaborate patterns. Gopinath chose to recreate “Starry Night” to demonstrate the technique’s power, because he’d always liked van Gogh’s work. Besides, he had just seen that Doctor Who episode (“Vincent and the Doctor”) in which everyone’s favorite Time Lord goes back to 1890 to help a fictional van Gogh battle an alien monster. Whereas prior work in this area used just a handful of these kinds of devices, Gopinath scaled everything up and stitched together 65,536 of them to recreate van Gogh’s masterpiece.
The next step is to refine this technique even further, perhaps by using different fluorescent molecules or another type of light emitter, like quantum dots, since the ones they used for these experiments tend to burn out quickly. Plus, the colors aren’t as pure as one would like for certain applications, like optical or quantum computing at the nanoscale.
Physicists are likely to be more interested in the potential for doing more fundamental experiments. For instance, an upcoming set of experiments will involve placing multiple emitters inside resonators and trying to get them to sync with each other—a phenomenon called “superadiance” that was first predicted by Robert Dicke back in 1952.
Gopinath likens the effect to how a bunch of metronomes on a table may start ticking out of sync, but will gradually start ticking in unison over time if the conditions are just right. In much the same way, multiple light emitters should sync up as well. “Nobody has yet done a clean experiment, because you have to position emitters at specific distances with respect to each other,” said Gopinath. This new paper provides a possible way to do that.
