Scenes From a Massive Undersea Cable Ship

When Alcatel-Lucent lays cable at the bottom of the sea, it does so using a variety of massive tools, ships and repeaters. They look a little something like this:

Illustration for article titled Scenes From a Massive Undersea Cable Ship
Advertisement

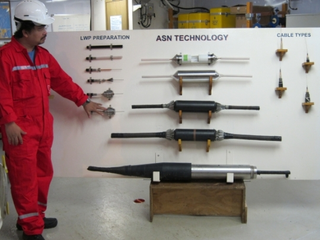

Different sizes for different depths. The thicker cables are actually for shallow depths, where ship anchors and fishermen's nets can cause damage.

Illustration for article titled Scenes From a Massive Undersea Cable Ship
Advertisement

The cable-laying beauty herself, the Ile de Batz. She is one of three cable ships in Alcatel-Lucent's arsenal. Each ship can lay roughly 120 miles of undersea cable per day, at a depth of up to eight kilometers.

Illustration for article titled Scenes From a Massive Undersea Cable Ship

This is an image of one of the many repeaters that Alcatel-Lucent ships lay down at points along an undersea cable to boost the signal. This particular example is two years old and boasts a throughput of approximately 1. terabits/second.

Illustration for article titled Scenes From a Massive Undersea Cable Ship
Advertisement

When laying cable in shallow seas, a plow is used to bury the cable three meters into the sea floor. The plow works in waters up to 1.5km deep. [CNET]
